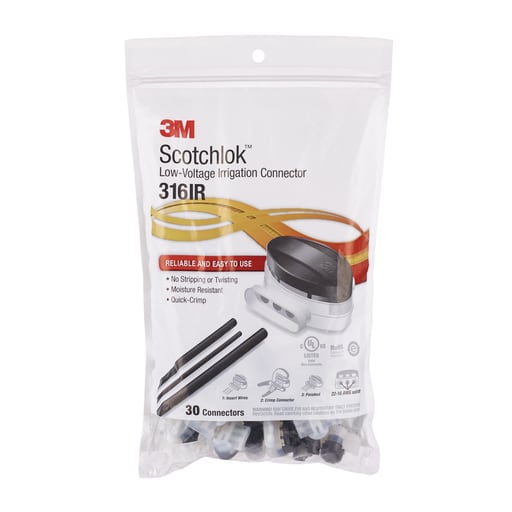

3M - 3M 316-IR BAG 30/Bag Low Voltage Irrigation Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007504191
Catalog Number - 7000058271
Color - Black,White
Conductor Size - 16 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00054007504191
Part #
138231
Catalog #
7000058271
Commercial reference
7000058271
12-Digit UPC:
054007504191
Catalog Number:
7000058271
Color:
Black,White
Conductor Size:
16 AWG
Country of Origin:
USA
ERP_productname:
3M 316-IR BAG (7000058271) SCOTCHLOK IDC CONNECTOR 316IR
Family Brand Name:
Scotchlok
Material:
Nylon
Product Type:
Connectors
Size:
22 - 16 AWG
Tc Connection:
Pigtail
SoneparProductId:
SKU_US_27106371

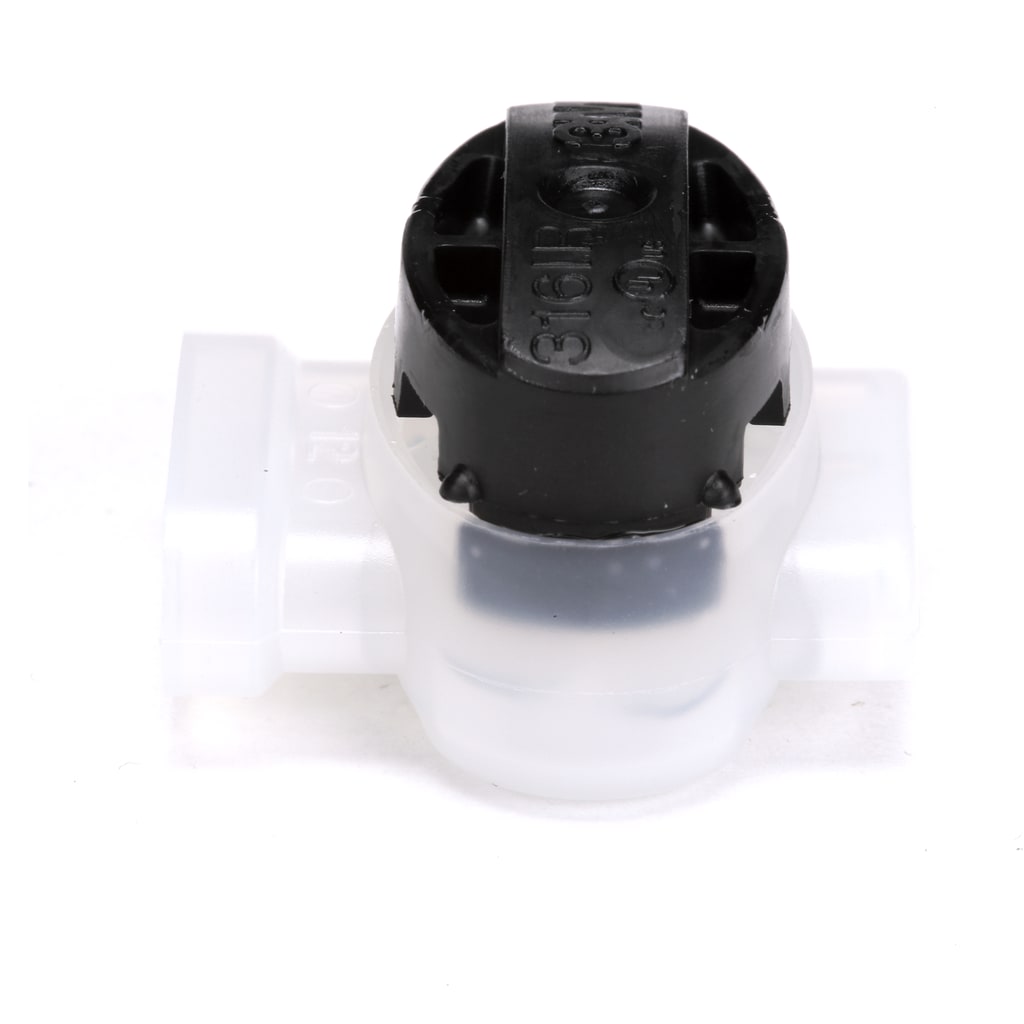

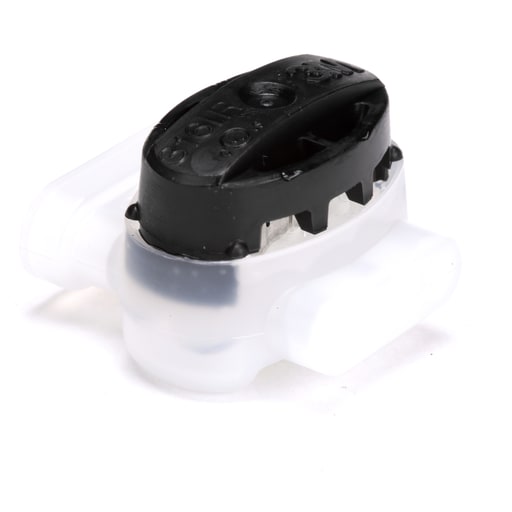

3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire, and insulates the connection. It has a maximum insulation O.D. diameter of 0.120 inches (3.05 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for this connector is the 3M™ Scotchlok™ Crimping Tool, E-9BM. Features: Mineral oil-based grease creates a moisture-resistant seal; Ideal for low energy underground circuit wires, sprinkler systems, irrigation and landscape lighting; Accommodates 16-14 AWG solid/stranded, 12 stranded (outer) & 18 solid/stranded, 20 stranded (inner); C UL Listed and RoHS 2011/65/EU Compliant; Operating temperature 221F (105C); 600 volts maximum
