3M - 3M 40056 Copper/Aluminum 1-Hole Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007135586
Applications - Aluminum or Copper Conductors
Catalog Number - 7000148827
Color - Brown
Conductor Size - 350 kcmil
Packaging
1 ea
EAN
00054007135586
Part #
119468
Catalog #
7000148827
Commercial reference
7000148827
12-Digit UPC:
054007135586
Applications:
Aluminum or Copper Conductors
Catalog Number:
7000148827
Color:
Brown
Conductor Size:
350 kcmil
Country of Origin:
USA
ERP_productname:
MMM 40056 40056 ALUMINUM COMPRESSION
Family Brand Name:
Scotchlok
Length:
4-1/4 Inch
Material:
Aluminum
Max Voltage:
35 kV
Number of Holes:
1 Hole
Overall Length:
4.25 in
Sub Brand:
Scotchlok
Type:
Standard Barrel
SoneparProductId:
SKU_US_25850571

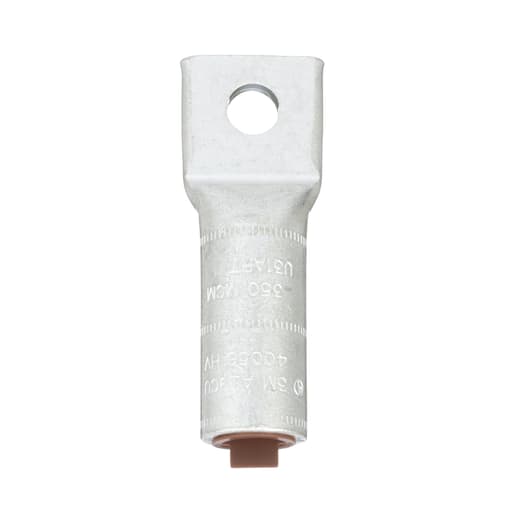

3M™ Scotchlok™ Aluminum One Hole Lug 40056 has a 1/2 inch stud size, a 0.720 inch (18.3 mm) I.D., and a 4.250 inch (108.0 mm) length. One piece seamless design. Features: Standard barrel ensures a secure fit and offers reliable performance; Barrel sealing caps are color coded to help to indicate the wire guage; Suitable for indoor and outdoor applications; Made of aluminum for good conductivity and tin plating for corrosion resistance; Rated for 35 kV applications
