3M - 3M 40166 Copper/Aluminum 2-Hole Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007136811
Applications - Aluminum or Copper Conductors
Catalog Number - 7000005892
Color - Pink
Conductor Size - 500 kcmil
Packaging
1 ea
EAN
00054007136811
Part #
186835
Catalog #
7000005892
Commercial reference
7000005892
12-Digit UPC:
054007136811
Applications:
Aluminum or Copper Conductors
Catalog Number:
7000005892
Color:
Pink
Conductor Size:
500 kcmil
Country of Origin:
USA
ERP_productname:
MMM 40166 40166 ALUMINUM COMPRESSION LUG 10EA/CAR
Family Brand Name:
Scotchlok
Length:
7.31 Inch
Material:
Aluminum
Max Voltage:
35 kV
Number of Holes:
2 Hole
Overall Length:
7.31 in
Sub Brand:
Scotchlok
Type:
Standard Barrel
Voltage:
35 kV
Widths:
0.843 in
SoneparProductId:
SKU_US_26363324

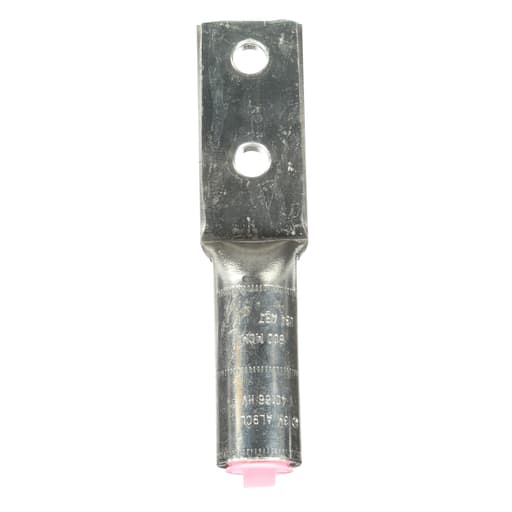

3M™ Scotchlok™ Aluminum Two Hole Lug 40166 has a 1/2 inch stud size, a 0.843 inch (21.4 mm) I.D., and a 7.310 inch (185.7 mm) length. One piece seamless design. Features: Standard barrel ensures a secure fit and offers reliable performance; Barrel sealing caps are color coded to help to indicate the wire guage; Made of aluminum for good conductivity and tin plating for corrosion resistance; Rated for 35 kV voltage applications; UL Listed and RoHS 2011/65/EU Compliant
