3M - 3M 5301 Motor Lead Pigtail Splice Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007122630
Applications - motor lead 12-14 AWG
Catalog Number - 7000005805
Conductor Size - 10-4 AWG/12-4 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00054007122630
Part #
158535
Catalog #
7000005805
Commercial reference
7000005805
12-Digit UPC:
054007122630
Applications:
motor lead 12-14 AWG
Catalog Number:
7000005805
Conductor Size:
10-4 AWG/12-4 AWG
Country of Origin:
USA
ERP_productname:
MMM 5301 MTR LEAD PIGTAIL SPLICE K
Family Brand Name:
3M
Material:
Rubber
Type:
Pigtail
Voltage:
1 kV
SoneparProductId:
SKU_US_25851290

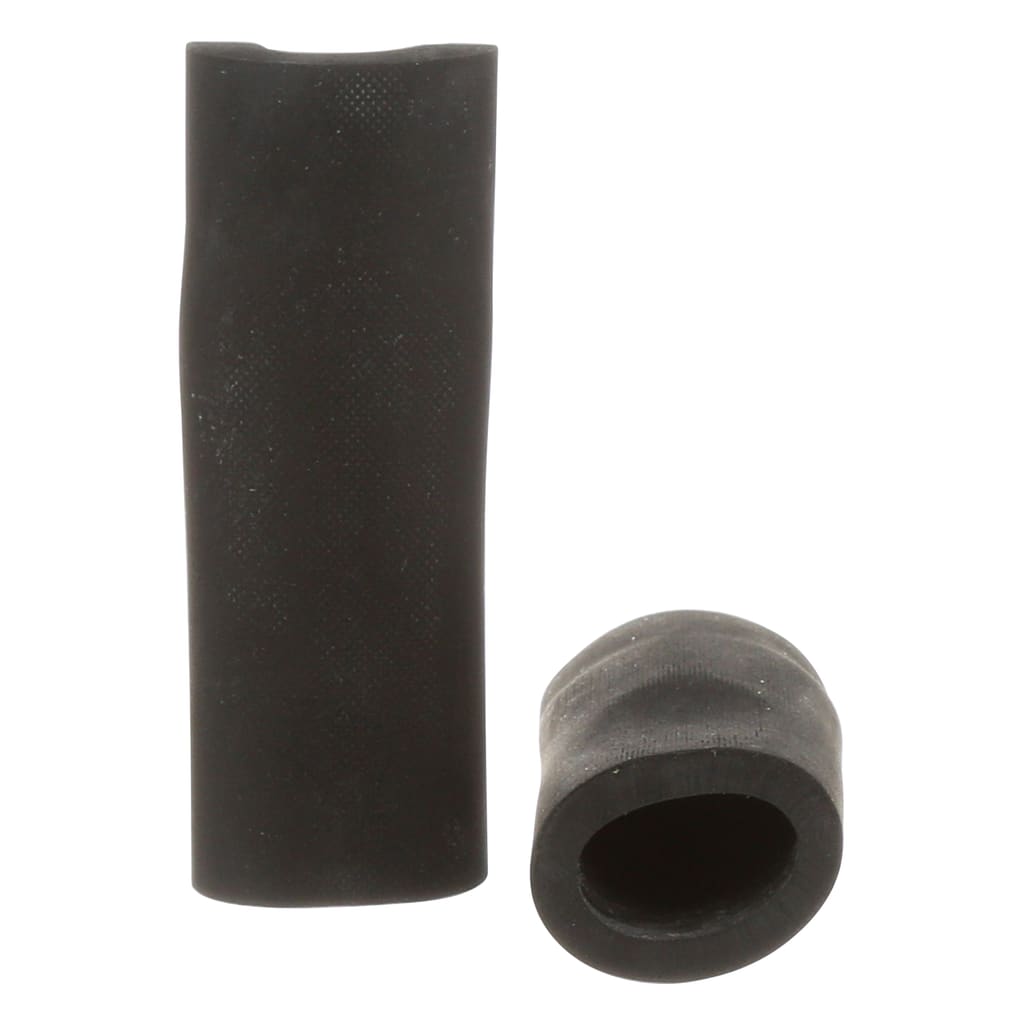

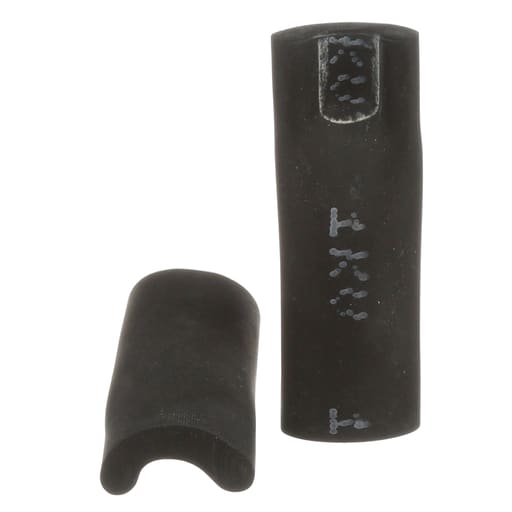

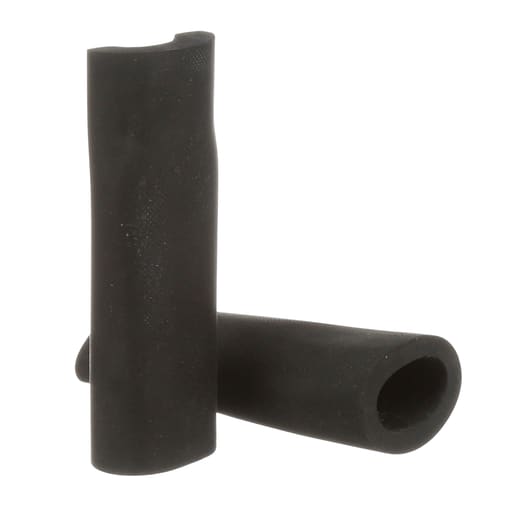

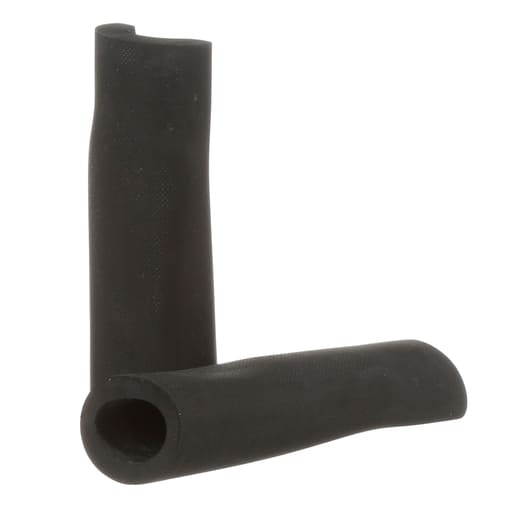

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm). Features: Splices motor lead cables to incoming feeder cables; Designed to use with copper compression, 1-hole lugs; Slip-on lug cover is made of durable EPDM rubber; For pigtail (stub) connections at 1000V or less; Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet; CSA Certified and RoHS 2011/65/EU Compliant
