3M - 3M 5304 Motor Lead (3 Splices/Kit) Splicing Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007122661
Catalog Number - 7000005808
Country of Origin - USA
ERP_productname - 3M 5304 (7000005808) MOTOR LEAD PIGTAIL SPLICE KITS, 1-HOLE LUG CONNECTIONS 5300-5304
Family Brand Name - 3M
Packaging
1 ea
EAN
00054007122661
Part #
161276
Catalog #
7000005808
Commercial reference
7000005808
12-Digit UPC:
054007122661
Catalog Number:
7000005808
Country of Origin:
USA
ERP_productname:
3M 5304 (7000005808) MOTOR LEAD PIGTAIL SPLICE KITS, 1-HOLE LUG CONNECTIONS 5300-5304
Family Brand Name:
3M
Type:
Pigtail (1 hole lugs)
Voltage:
1 kV
SoneparProductId:
SKU_US_26363359

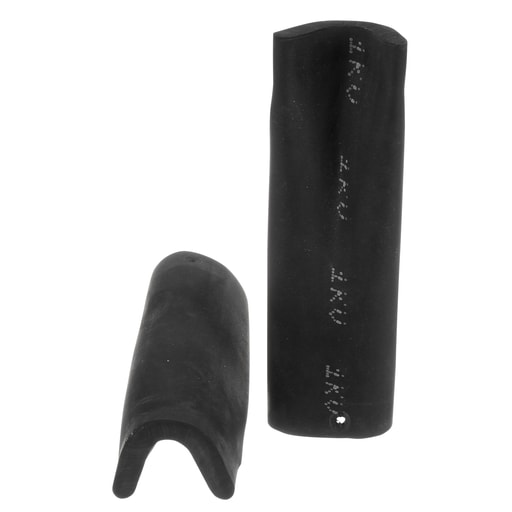

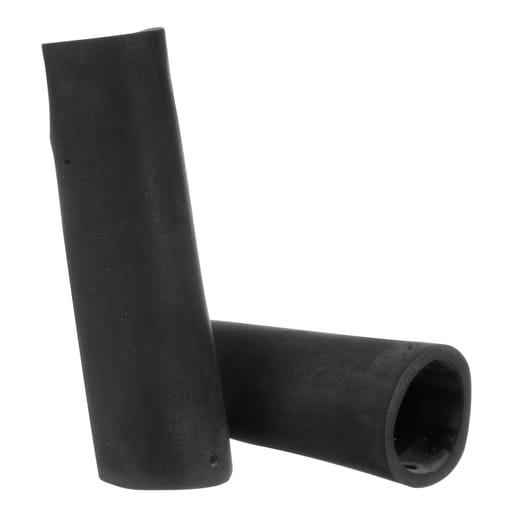

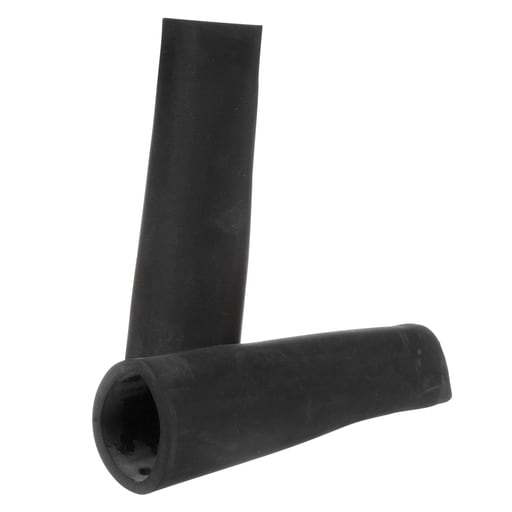

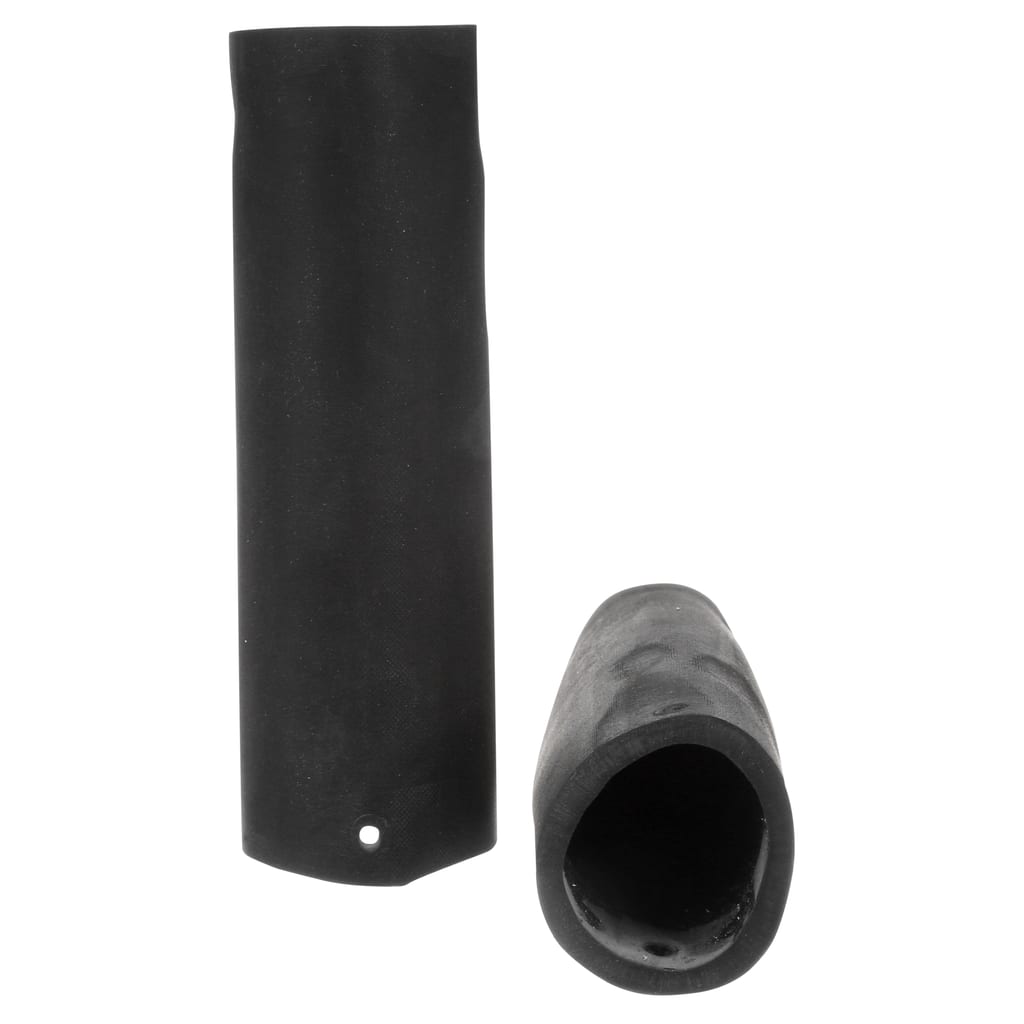

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm). Features: Splices motor lead cables to incoming feeder cables; Designed to use with copper compression, 1-hole lugs; Slip-on lug cover is made of durable EPDM rubber; For pigtail (stub) connections at 1000V or less; Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet; CSA Certified and RoHS 2011/65/EU Compliant
