3M - 3M 5322 Motor Lead 3 Splices/Kit Splicing Kit

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007122722

  • Applications - For Splicing Polyethylene/Cross Linked Cable, Ethylene Propylene Rubber Cable, Copper Conductors

  • Catalog Number - 7000006042

  • Color - Black

  • Conductor Size - 2-1/0 AWG Feeder, 4-1/0 AWG Motor Lead

Packaging

  • 1 ea

EAN

00054007122722

Part #

161486

Catalog #

7000006042

Commercial reference

7000006042

12-Digit UPC:

054007122722

Applications:

For Splicing Polyethylene/Cross Linked Cable, Ethylene Propylene Rubber Cable, Copper Conductors

Catalog Number:

7000006042

Color:

Black

Conductor Size:

2-1/0 AWG Feeder, 4-1/0 AWG Motor Lead

Country of Origin:

USA

ERP_productname:

MMM 5322 SPLICE CAP

Family Brand Name:

3M

Length:

8 - 9 Inch

Material:

EPDM

Type:

Motor Lead Pigtail Splice

Voltage:

8 kV

SoneparProductId:

SKU_US_26106376

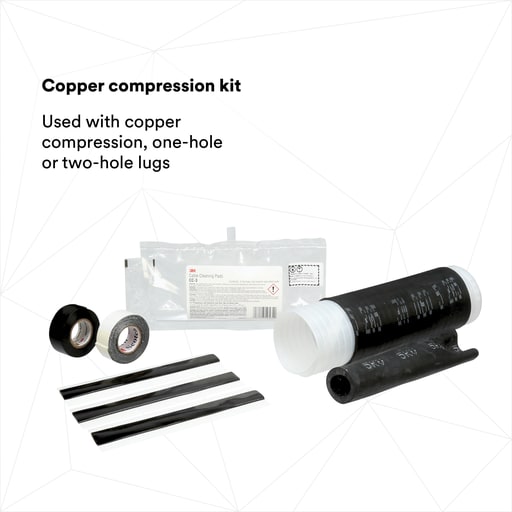

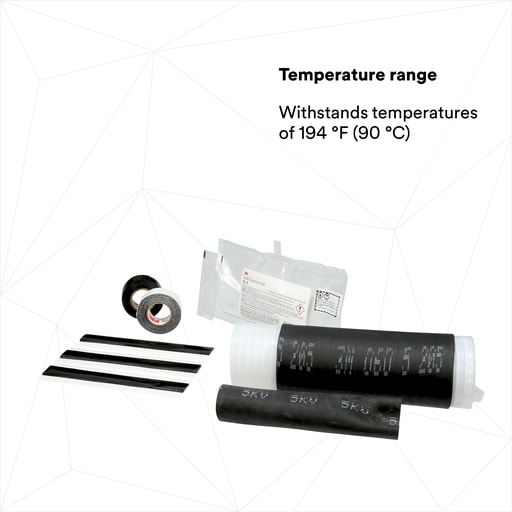

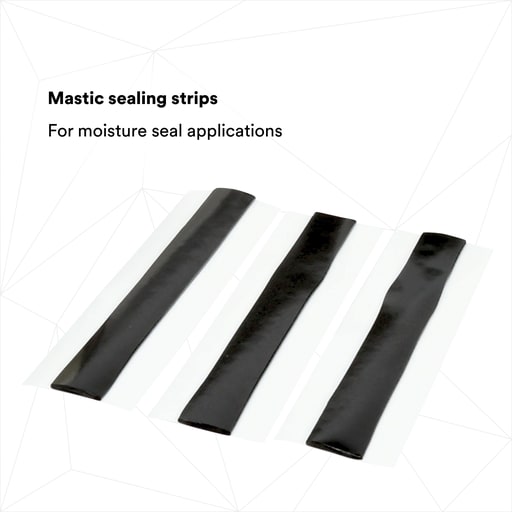

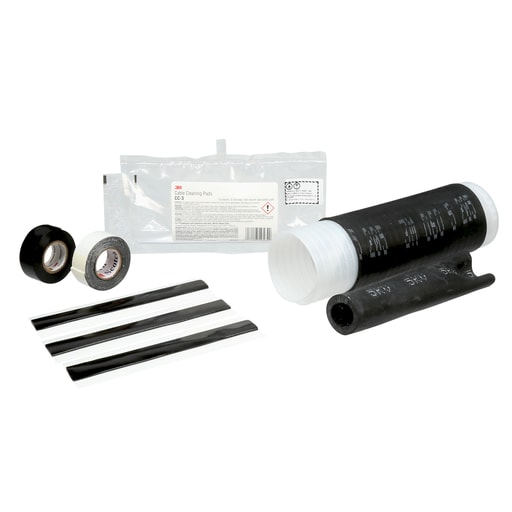

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 8-4 AWG (10-16 sq mm), motor lead 10-4 AWG (6-16 sq mm). Features: SPLICE MOTOR LEADS: Used for splicing motor lead cables to incoming feeder cables; ACCOMMODATES PIGTAIL (STUB) CONNECTIONS: 5/8kV shielded and non-shielded feeder cables sized 8AWG to 500kcmil; EPDM RUBBER: Slip-on splice cover is made of durable EPDM rubber; MASTIC SEALING STRIPS: For moisture seal applications; COPPER COMPRESSION KIT: Used with copper compression, one-hole or two-hole lugs; TEMPERATURE RANGE: Rated operating temperature of 90 ±C (194 ±F) and an emergency overload rating of 130 ±C (266 ±F).
