3M - 3M 5552 Cold Shrink 5 kV (3 Splices/Kit) Rubber Splice Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007090908
Applications - Cable Connection
Catalog Number - 7000006047
Color - Black
Conductor Size - 500 kcmil
Packaging
1 ea
EAN
00054007090908
Part #
249085
Catalog #
7000006047
Commercial reference
7000006047
12-Digit UPC:
054007090908
Applications:
Cable Connection
Catalog Number:
7000006047
Color:
Black
Conductor Size:
500 kcmil
Country of Origin:
USA
ERP_productname:
MMM 5552 QUICK SPLICE KIT
Family Brand Name:
3M
Length:
21 Inch
Material:
Rubber
Number of Conductors:
1
Overall Length:
21.0 in
Product Type:
Splice
Type:
Inline Splice
Voltage:
5 kV
SoneparProductId:
SKU_US_25610635

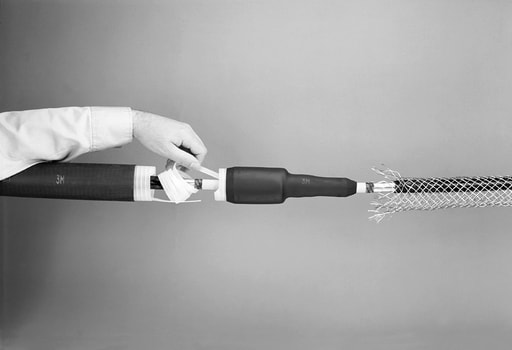

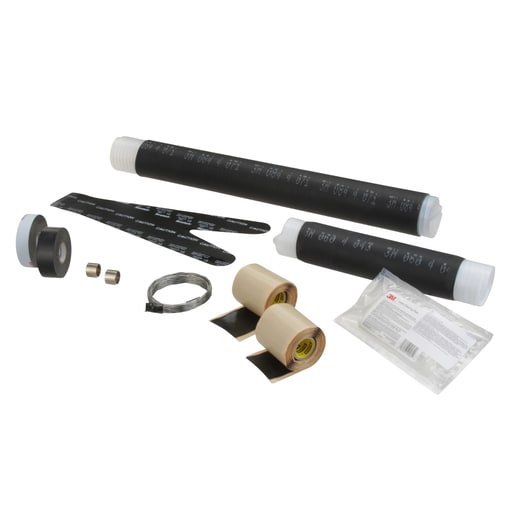

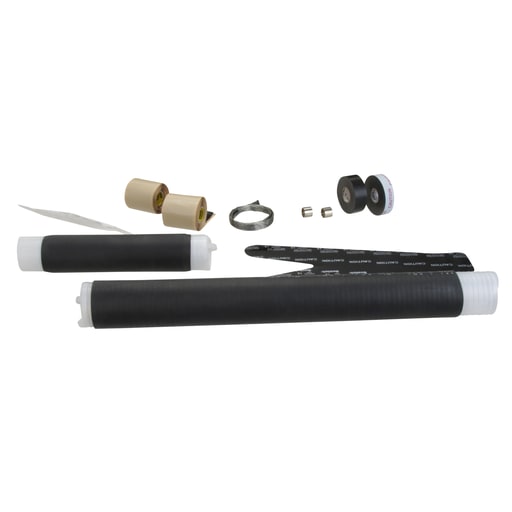

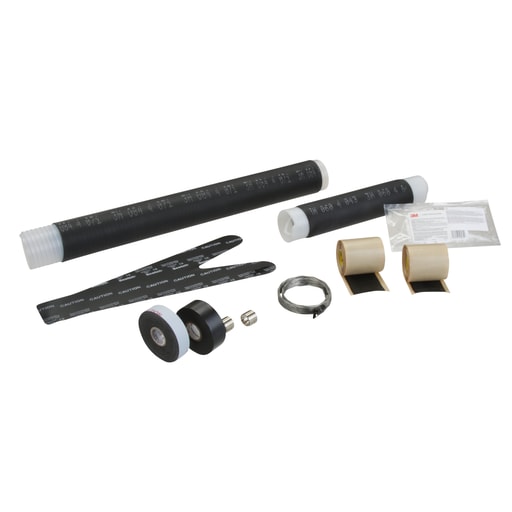

The 3M™ Cold Shrink Rubber Splicing Kit contains all the materials (except connectors and optional ground strap) required to construct three single conductor splices on tape shield, wire shield or UniShield® Cables. Features: Provides splicing on tape shield, wire shield and UniShield® cables; This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct-burial applications; Insulator and jacket is made of EPDM for easy installation; Rated for 5/8 kV applications; IEEE Approved
