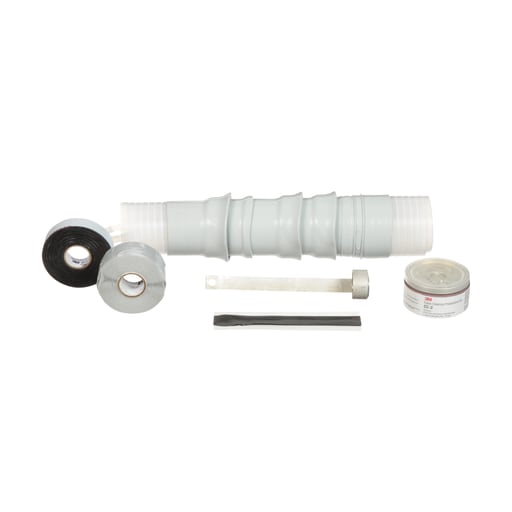

3M - 3M 5636K Cold Shrink 3 Terms/Kit Skirted Termination Kit

CopyCopy
3M - 3M 5636K Cold Shrink 3 Terms/Kit Skirted Termination Kit

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007122586

  • Applications - Cable Termination

  • Catalog Number - 7000031454

  • Color - Gray

  • Conductor Size - 1000 kcmil; 1250 kcmil; 1500 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil

Packaging

  • 1 ea

EAN

00054007122586

Part #

147766

Catalog #

7000031454

Commercial reference

7000031454

12-Digit UPC:

054007122586

Applications:

Cable Termination

Catalog Number:

7000031454

Color:

Gray

Conductor Size:

1000 kcmil; 1250 kcmil; 1500 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil

Country of Origin:

USA

ERP_productname:

3M 5636K (7000031454) COLD SHRINK QT-II OUTDOOR TERMINATION KITS 5630K SERIES

Family Brand Name:

3M

Number of Conductors:

1

Type:

QT-II

Voltage:

15 kV

SoneparProductId:

SKU_US_26363723

3M™ Cold Shrink QT-II Terminations provide easy installation for a broad spectrum of indoor and outdoor applications. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable's dimensions. The result is a void-free, flexible seal without special tools or torches. Features: One-piece cold shrink termination.; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor, weather exposed applications; Silicone rubber insulation is track-resistance and hydrophobic; Silicone cold shrink application provides constant radial pressure, \"living seal\; Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
