3M - 3M 5776A-MT QS-III 3 Conductor Splice Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007441120
Applications - Cable Connection
Catalog Number - 7000031664
Color - Black
Conductor Size - 4/0 AWG-500 kcmil
Packaging
1 ea
EAN
00054007441120
Part #
291227
Catalog #
7000031664
Commercial reference
7000031664
12-Digit UPC:
054007441120
Applications:
Cable Connection
Catalog Number:
7000031664
Color:
Black
Conductor Size:
4/0 AWG-500 kcmil
Country of Origin:
USA
ERP_productname:
MMM 5776A-MT 3M? COLD SHRINK QS-III 3/C ARMORED OR NON-ARMORED CABLE SPLICE KITS 5775A-MT, 5776A-MT & 5777A-MT FOR 5/8 KV
Family Brand Name:
3M
Number of Conductors:
3
Product Type:
Splice
Type:
Inline
Voltage:
15 kV
SoneparProductId:
SKU_US_26146618

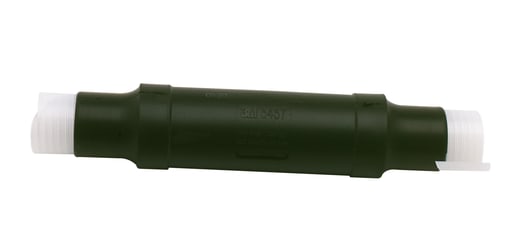

3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kits 5775A-MT, 5776A-MT and 5777A-MT Series are designed for splicing 3-conductor, Armoured and non-Armoured, shielded power cables. The kits are rated for use on 5/8 kV cables with conductor sizes from 3/0 AWG-1000 kcmil (95-500 mm.) or 15 kV cables with conductor sizes from 2 AWG-750 kcmil (35-325 mm.). Features: Splices shielded cables; Silicon rubber-splice body provides good high- or low-temperature performance and Armorcast™ jacket offers mechanical protection; Suitable for use with 10000 and 20000 Series connectors or other UL Listed inline compression connectors; Solderless ground braid offers constant force spring connection; Rated for 5/8 to 15 kV applications
