3M - 3M 5815-T Add On Modular Splice Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007042310
Amperage - 600 Ampere
Applications - 600 A
Catalog Number - 7100002307
Color - Black
Packaging
1 ea
EAN
00054007042310
Part #
201475
Catalog #
7100002307
Commercial reference
7100002307
12-Digit UPC:
054007042310
Amperage:
600 Ampere
Applications:
600 A
Catalog Number:
7100002307
Color:
Black
Country of Origin:
USA
ERP_productname:
MMM 5815-T MODULAR SPLICE ADD ON
Family Brand Name:
3M
Material:
Rubber
Overall Length:
12.25 in
Product Type:
Splice
Type:
Modular Splice
SoneparProductId:
SKU_US_25332376

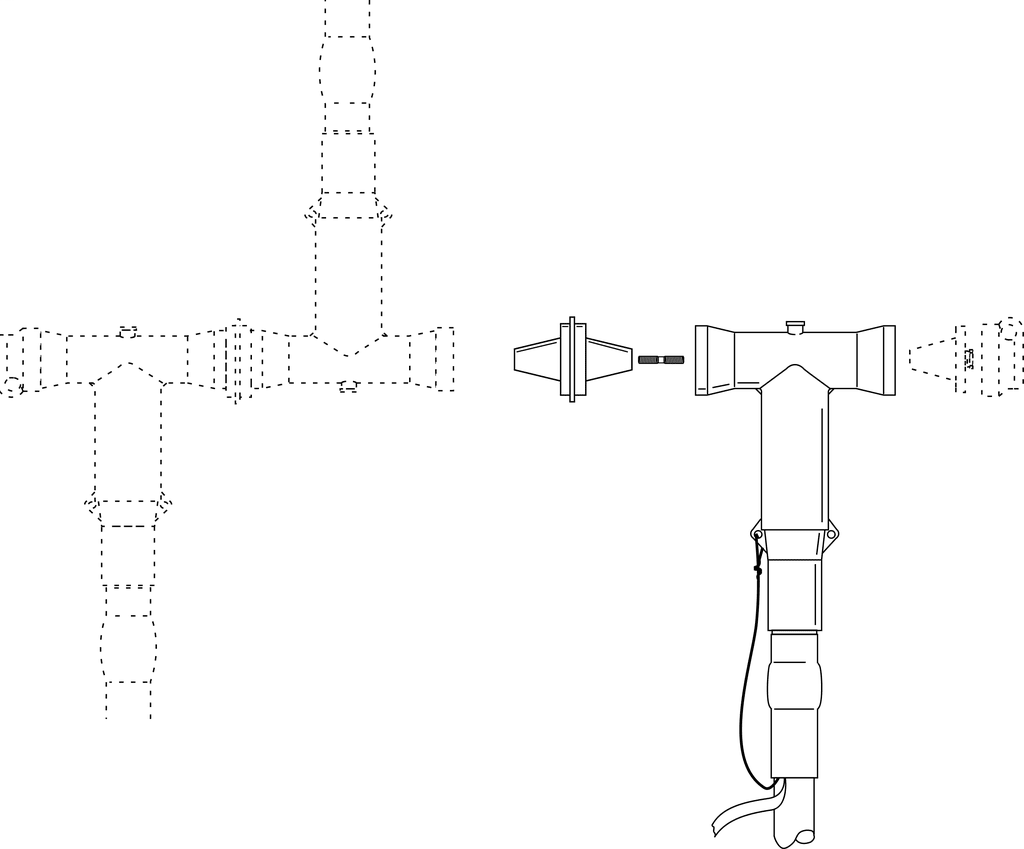

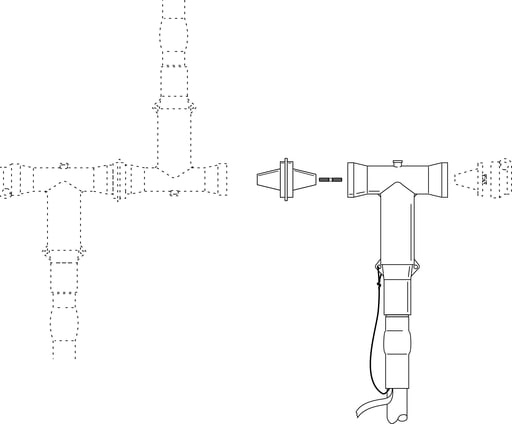

3M™ Modular Add On Tap Splicing Kit contains all the accessories to tap onto an existing dead end or to combine with a 3M™ Modular Splice 5815 S for a 3 way installation, all without disturbing the original connection. This kit can be connected with a 5815 E kit for connecting parallel feeds. This kit is rated for 5 to 25 kV and 600 amps. Features: Splices tape shield, wire shield, UniShield® and JCN cables; Designed for connecting parallel feeds by combining with 5815-E equipment; Tap into an existing dead-end or to combine with a 5815-S splice for a 3-way installation; Meets ANSI/IEEE Standard 386
