3M - 3M 7000058108 3M™ Cold Shrink QT-II
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007697916
Applications - Cable Termination
Catalog Number - 7000058108
Color - Gray
Conductor Size - 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
Packaging
1 ea
EAN
00054007697916
Part #
356955
Catalog #
7000058108
Commercial reference
7000058108
12-Digit UPC:
054007697916
Applications:
Cable Termination
Catalog Number:
7000058108
Color:
Gray
Conductor Size:
250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
Country of Origin:
USA
ERP_productname:
3M 5652 (7000058108) COLD SHRINK QT-II OUTDOOR TERMINATION KITS 5640 & 5650 SERIES
Family Brand Name:
3M
Material:
Rubber
Type:
QT-II
Voltage:
15 kV
SoneparProductId:
SKU_US_72930512

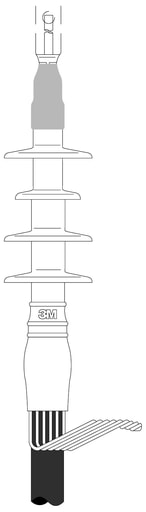

The 3M™ Cold Shrink QT-II Outdoor Termination Kits are one-piece cold shrink terminations for Jacketed Concentric Neutral (JCN) power cables. Features: One-piece cold shrink termination.; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor, weather exposed applications; Silicone rubber insulation is track-resistance and hydrophobic; Silicone cold shrink application provides constant radial pressure, \"living seal\; Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
