3M - 3M 7000132925 3M™ Cold Shrink QS-II

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007430551

  • Catalog Number - 7000132925

  • Conductor Material - Aluminum; Copper

  • Conductor Size - 4/0 AWG

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00054007430551

Part #

276115

Catalog #

7000132925

Commercial reference

7000132925

12-Digit UPC:

054007430551

Catalog Number:

7000132925

Conductor Material:

Aluminum; Copper

Conductor Size:

4/0 AWG

Country of Origin:

USA

ERP_productname:

MMM 5467A-4/0-AL

Family Brand Name:

3M

Number of Conductors:

1

Product Type:

Splice

Voltage:

35 kV

SoneparProductId:

SKU_US_105356865

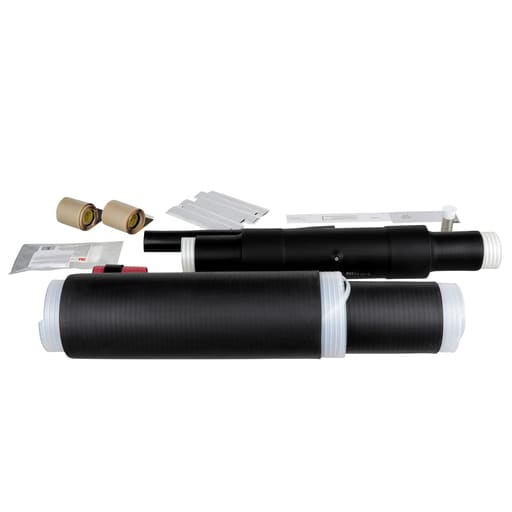

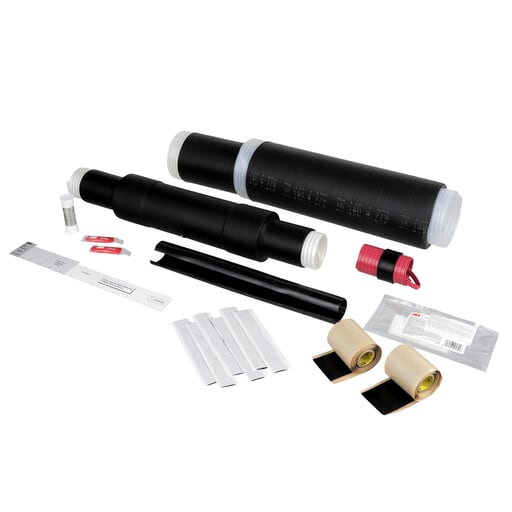

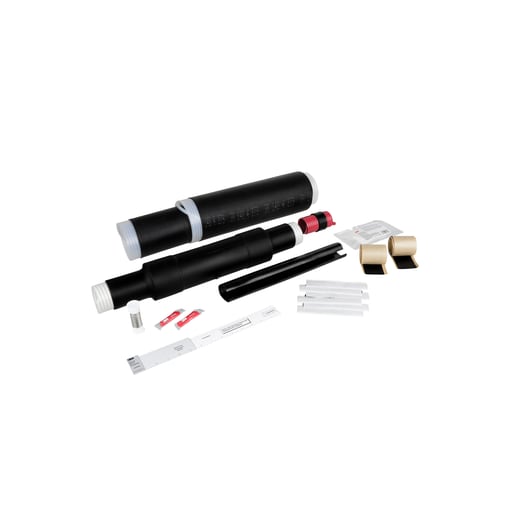

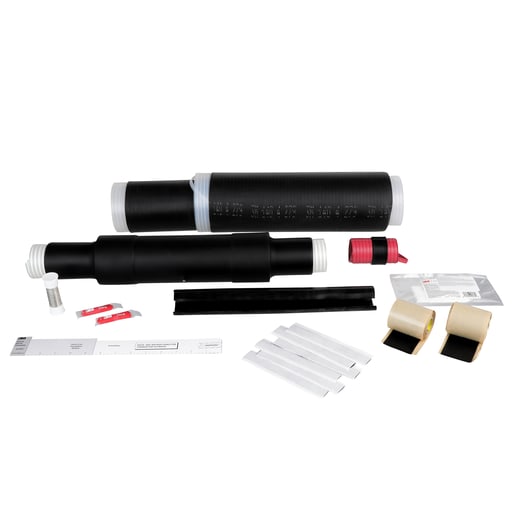

The 3M™ Cold Shrink QS-III Inline CN/JCN Cable Splice Kit 5467A Series is an inline splice designed to join 35 kV jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV 90 or type MV 105 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions. Features: Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables; Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface; Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors; Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection; Rated for 35 kV cables; High-voltage, production-tested for partial discharge and AC ensure reliability
