3M - 3M 7000133276 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128586495
Catalog Number - 7000133276
Color - Metal
Conductor Size - 22-18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128586495
Part #
203440
Catalog #
7000133276
Commercial reference
7000133276
12-Digit UPC:
051128586495
Catalog Number:
7000133276
Color:
Metal
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM M18BCX NON-INSULATED SEAMLESS BUTT CONNECTOR
Family Brand Name:
3M
Length:
0.63 Inch
Material:
Copper
Overall Length:
0.63 in
Product Type:
Connector
Sub Brand:
Scotchlok™
Type:
Zero-Force Touch Button Accessory
SoneparProductId:
SKU_US_73972568

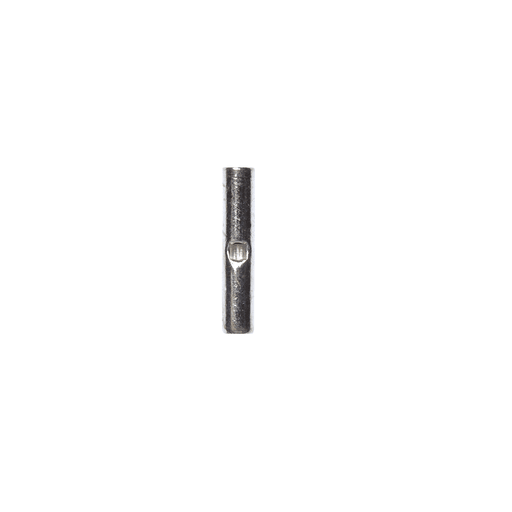

3M™ Scotchlok™ Butt Connector is used to connect two single wires making an in-line splice. This butt connector is non-insulated and uses chamfered barrel ends to provide fast easy wire insertion from both ends and a built in wire stop for correct positioning. It must be crimped at ends. 3M™ Scotchlok™ Butt Connectors are UL Recognized and CSA certified. : Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; Built-in wire stop for correct positioning; Accommodates wire sizes 22 to 18 AWG; Offers electrical connection to a pre-stripped end of a stranded wire; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
