3M - 3M 7000149322 3M™ Cold Shrink QT-II

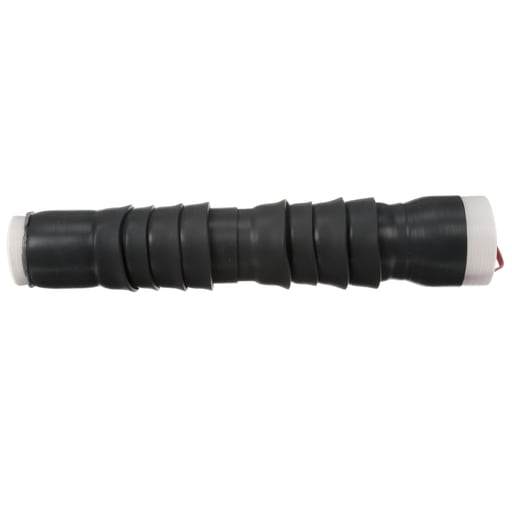

3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination 7666-S-8 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil, 25/28 kV: 900-1750 kcmil and 35 kV: 700-1500 kcmil. Features: Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
