3M - 3M 7010304199 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587881
Catalog Number - MU18-250DFX
Conductor Size - 18 AWG
ERP_productname - 3M MU18-250DFX (7010304199) SCOTCHLOK NON-INSULATED BUTTED SEAM FEMALE DISCONNECTS
Family Brand Name - Scotchlok
Packaging
1 ea
EAN
00051128587881
Part #
203754
Catalog #
7010304199
Commercial reference
7010304199
12-Digit UPC:
051128587881
Catalog Number:
MU18-250DFX
Conductor Size:
18 AWG
ERP_productname:
3M MU18-250DFX (7010304199) SCOTCHLOK NON-INSULATED BUTTED SEAM FEMALE DISCONNECTS
Family Brand Name:
Scotchlok
Length:
0.66 Inch
Overall Length:
0.66 in
SoneparProductId:
SKU_US_29606834

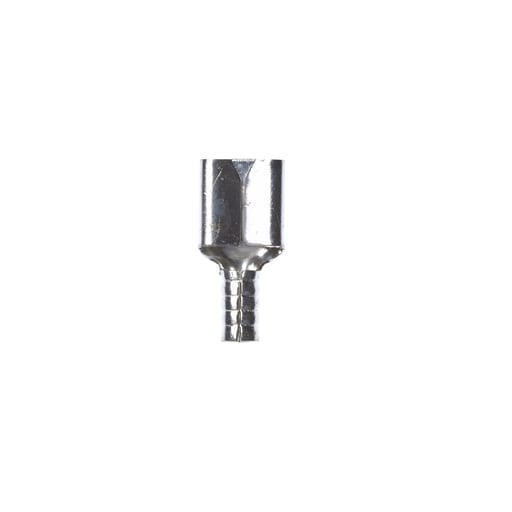

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. : Accommodates wire sizes 22 to 18 AWG; Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires; Allows for quick and easy disconnect of wires; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; Made of durable brass for good conductivity and has corrosion-resistant tin plating; Dents and rolled edges of this female disconnect terminal offer excellent holding force; Mates with 0.25-in wide male tab
