3M - 3M 7010398205 3M™ Scotchlok™ Vinyl

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128588833

  • Catalog Number - 7010398205

  • Conductor Size - 14 AWG

  • Country of Origin - USA

  • ERP_productname - 3M MVU14-10FX (7010398205) SCOTCHLOK VINYL INSULATED BUTTED SEAM STANDARD FORKS

Packaging

  • 1 ea

EAN

00051128588833

Part #

135947

Catalog #

7010398205

Commercial reference

7010398205

12-Digit UPC:

051128588833

Catalog Number:

7010398205

Conductor Size:

14 AWG

Country of Origin:

USA

ERP_productname:

3M MVU14-10FX (7010398205) SCOTCHLOK VINYL INSULATED BUTTED SEAM STANDARD FORKS

Family Brand Name:

3M

Length:

0.9 Inch

Material:

PVC

Overall Length:

0.9 in

Sub Brand:

Scotchlok™

Type:

Fork

Widths:

0.34 in

SoneparProductId:

SKU_US_30026253

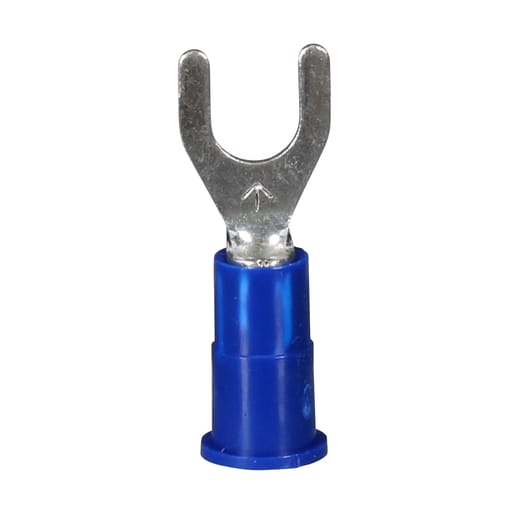

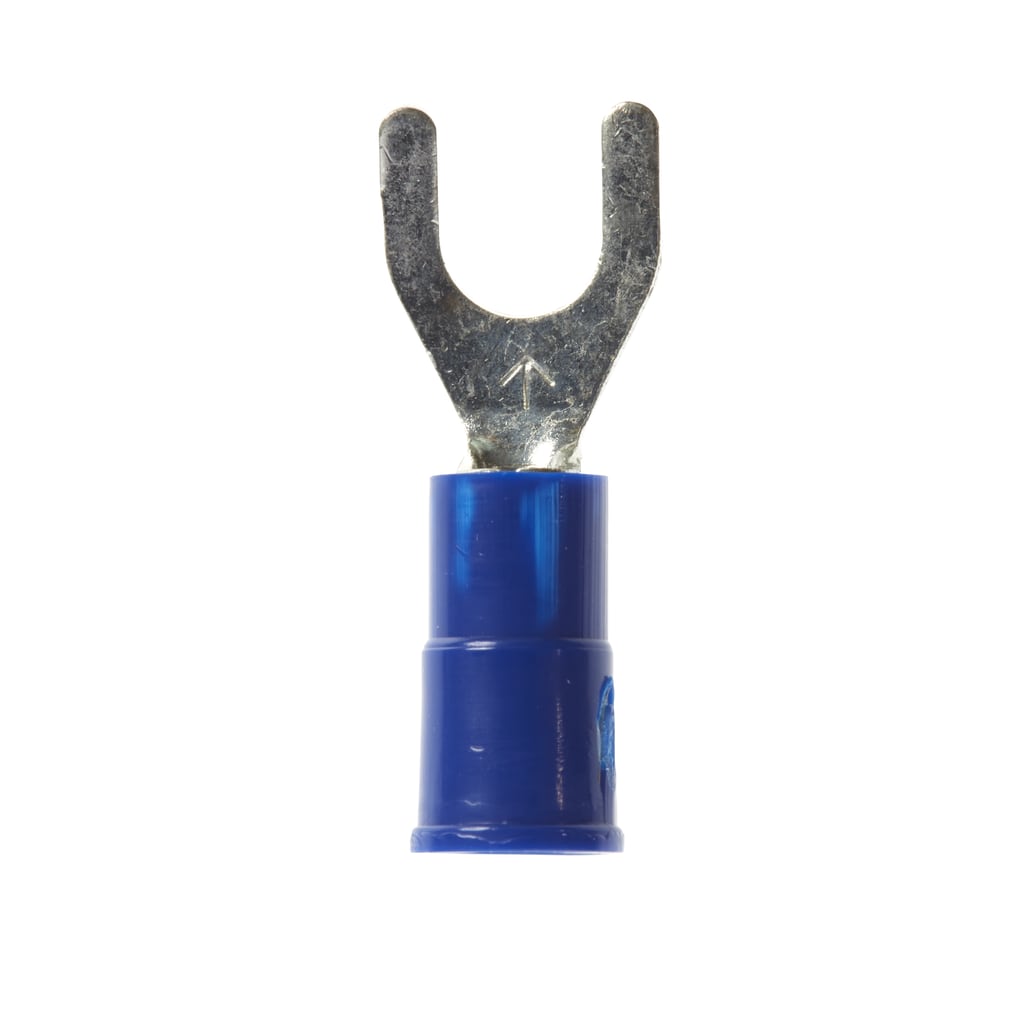

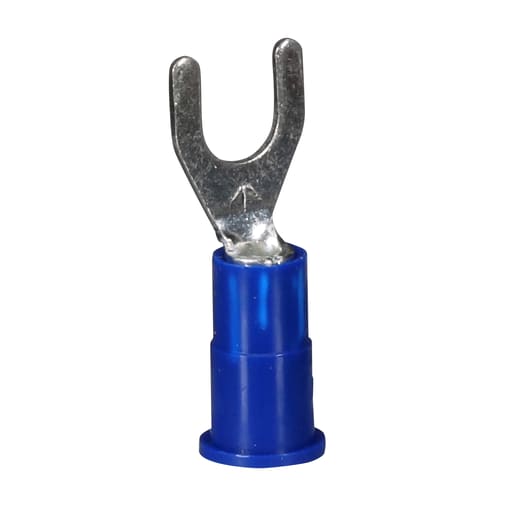

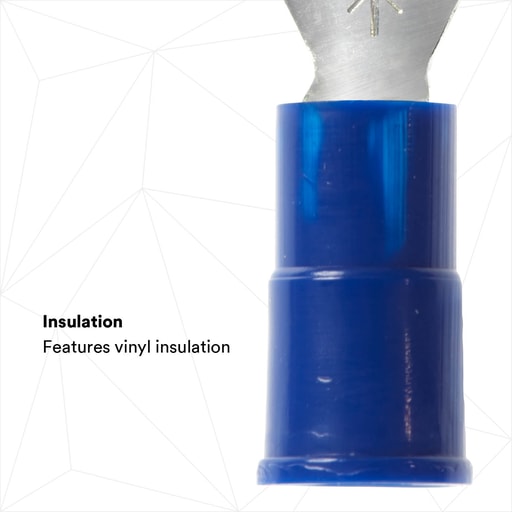

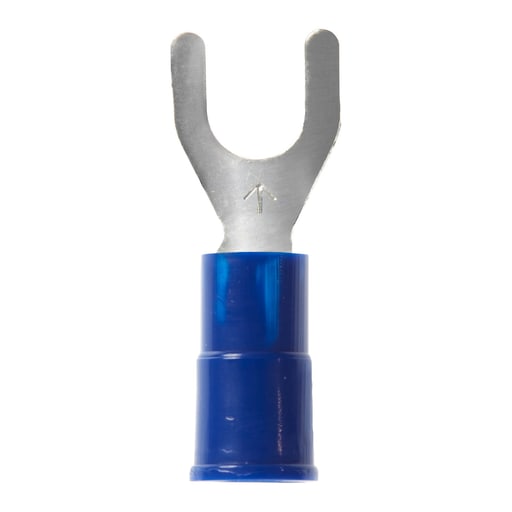

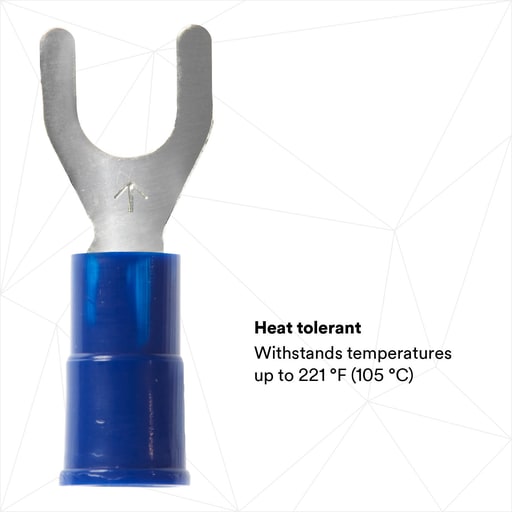

3M™ Scotchlok™ Fork Vinyl Insulated MVU14-10FX is a crimp-type terminal that is used to electrically and mechanically connect to a pre-stripped end of a stranded copper wire. It has a flat, wider-tongue design with a central opening for mounting around a screw or free-standing studs. The terminal features a butted barrel seam with vinyl insulation that works together to provide a secure fit for wires and cables. Made with ETP copper, this vinyl-insulated terminal provides excellent conductivity while the tin plating protects cables and wires from corrosion. Stud size is #10. The vinyl-insulated fork has a maximum operating temperature of 221 .F (105 .C). 3M™ Scotchlok™ Fork Vinyl Insulated MVU14-10FX provides a secure fit and reliable connection during industrial wiring applications. UL Listed and CSA Certified for use on stranded copper (AWG) wire only. UL Standard No. 486A, 3M File No. E23438; CSA Standard No. 22.2 No. 0.65, 3M File No. LR22190. Features: EASY CONNECTIVITY: Butted barrel seam makes connection simple, size range 16-14 AWG, stud size #10; HEAT TOLERANT: Withstands temperatures up to 221 ±F (105 ±C); INSULATION: Features vinyl insulation; INDUSTRY STANDARD: UL Listed and CSA Certified for use on stranded copper (AWG) wire only; EXCELLENT CONDUCTIVITY: Provides good conductivity due to ETP copper terminal design; PLATING: Features tin plating
