3M - 3M 7010399933 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587003
Catalog Number - 7010399933
Conductor Size - 6 AWG
ERP_productname - MMM M6-38RX RING NON-INSULATED, 10/BOTTLE
Family Brand Name - 3M
Packaging
1 ea
EAN
10051128587000
Part #
137338
Catalog #
7010399933
Commercial reference
7010399933
12-Digit UPC:
051128587003
Catalog Number:
7010399933
Conductor Size:
6 AWG
ERP_productname:
MMM M6-38RX RING NON-INSULATED, 10/BOTTLE
Family Brand Name:
3M
Length:
1.22 Inch
Overall Length:
1.22 in
Sub Brand:
Scotchlok
Type:
Ring
Widths:
0.63 in
SoneparProductId:
SKU_US_32140163

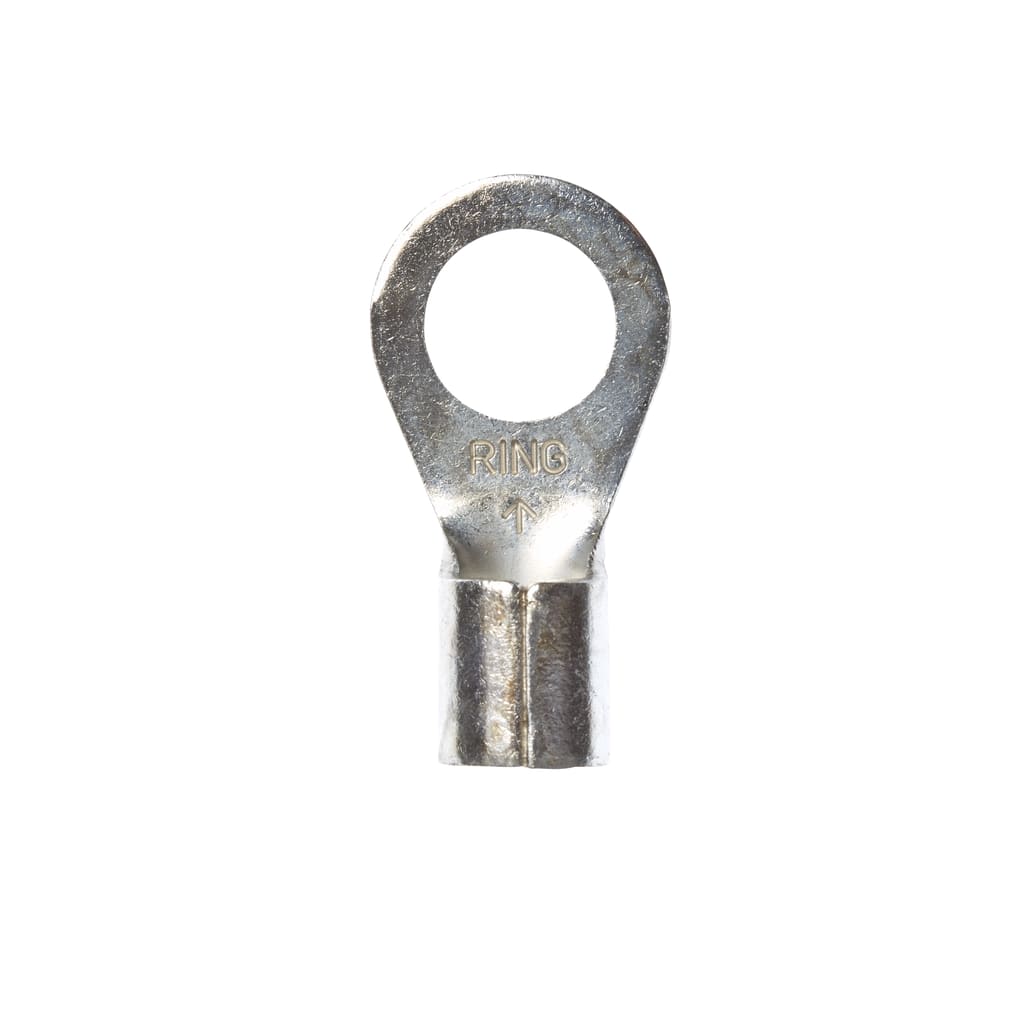

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. : Stud size 3/8 in; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Accommodates wire size 6 AWG; Beveled mouth offers easy insertion of wires; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; 10/carton, 100/case; Standard-style ring tongue fits around the stud; 600V-rated for building wire and 1000V for signs, fixtures or luminaires; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
