3M - 3M 7100005956 3M™ Cold Shrink QT-II
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007421702
Applications - Outdoor
Catalog Number - 7100005956
Conductor Size - 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
Country of Origin - USA
Packaging
1 ea
EAN
00054007421702
Part #
175503
Catalog #
7100005956
Commercial reference
7100005956
12-Digit UPC:
054007421702
Applications:
Outdoor
Catalog Number:
7100005956
Conductor Size:
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
Country of Origin:
USA
ERP_productname:
MMM 7622-S-2 COLD SHRINK TERMNTN K
Family Brand Name:
3M
Material:
Rubber
Type:
QT-III
Voltage:
15 kV
SoneparProductId:
SKU_US_554822169

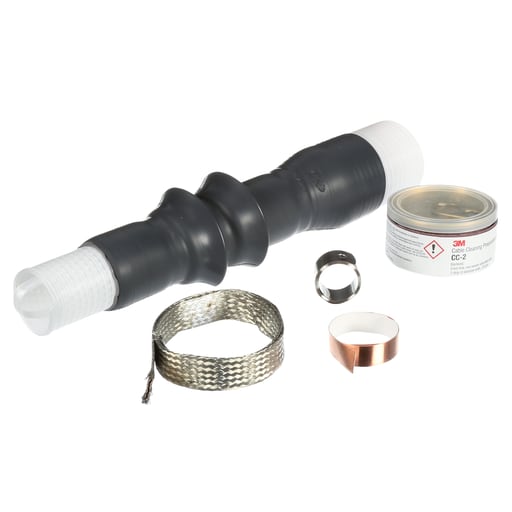

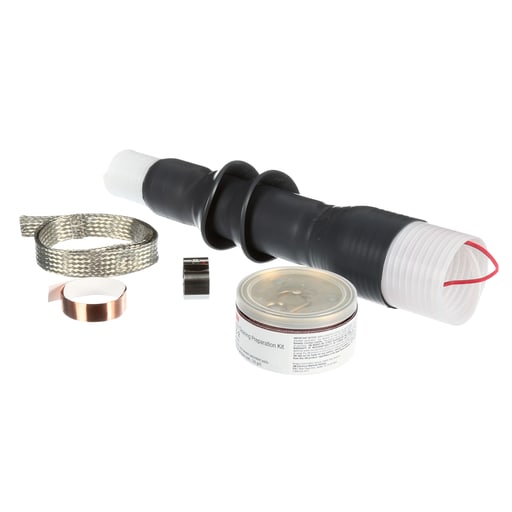

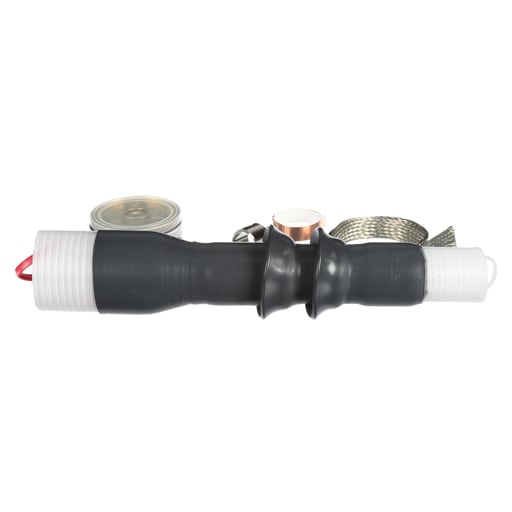

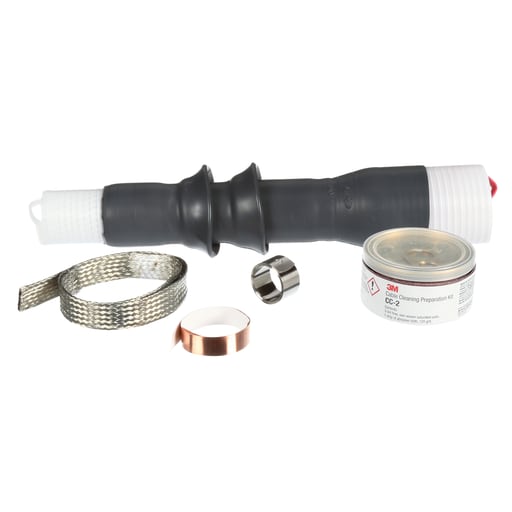

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 2 Skirt Termination7622-S-2 has a conductor size range for 5 kV: 4/0 AWG-400 kcmil, 8 kV: 3/0 AWG-300 kcmil and 15 kV: 2-4/0 AWG. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
