3M - 3M 7100014045 3M™ Cold Shrink Conne

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128537114

  • Applications - Insulation,Mechanical Protection,Repair

  • Catalog Number - 7100014045

  • Color - Black

  • Conductor Material - Aluminum,Copper

Packaging

  • 1 ea

EAN

00051128537114

Part #

224027

Catalog #

7100014045

Commercial reference

7100014045

12-Digit UPC:

051128537114

Applications:

Insulation,Mechanical Protection,Repair

Catalog Number:

7100014045

Color:

Black

Conductor Material:

Aluminum,Copper

Conductor Size:

600 kcmil

Country of Origin:

USA

ERP_productname:

3M 8428-8 (7100014045) COLD SHRINK CONNECTOR INSULATORS 8420 AND 8430 SERIES

Family Brand Name:

3M

Material:

Rubber

Number of Conductors:

1

Overall Length:

8.0 in

Product Type:

Splice

Size:

500 kcmil; 600 kcmil; 650 kcmil; 700 kcmil; 750 kcmil; 800 kcmil

Type:

Cold Shrink Splice

Voltage:

1 kV

SoneparProductId:

SKU_US_30726768

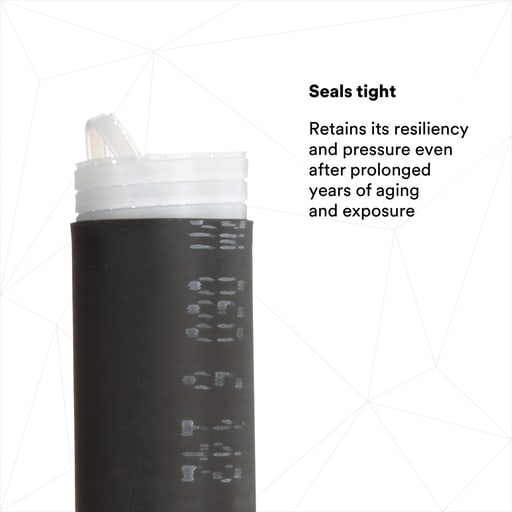

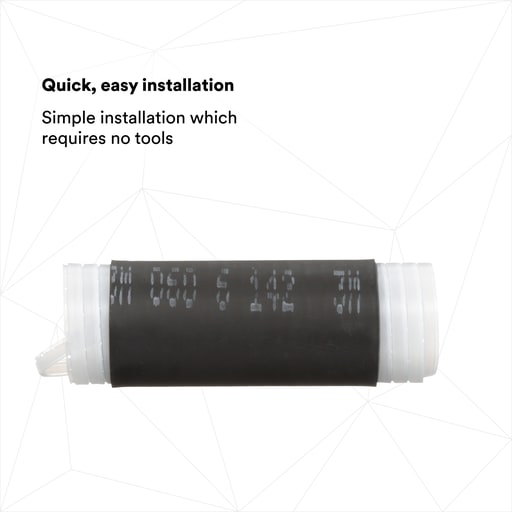

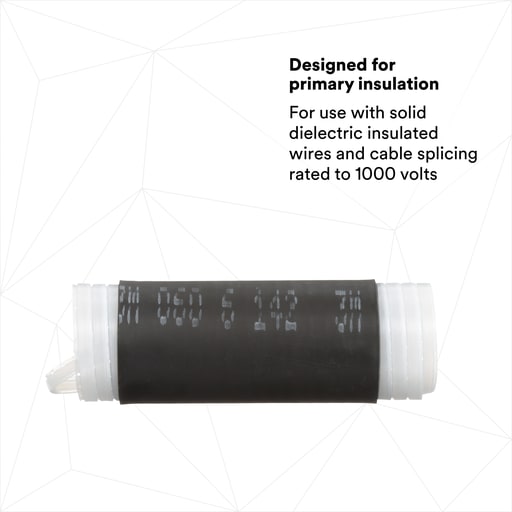

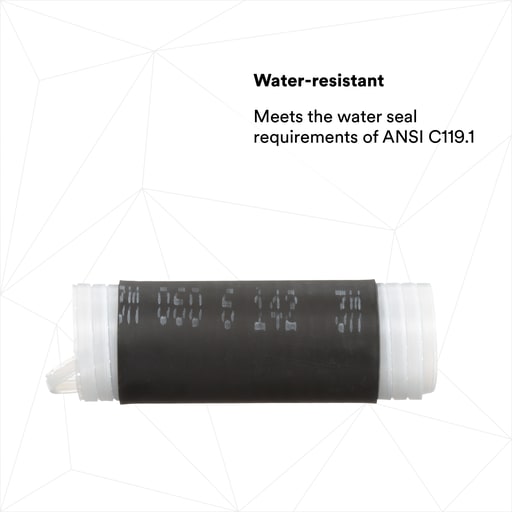

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal. Features: DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts; QUICK, EASY INSTALLATION: Simple installation which requires no tools; SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure; TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible; TEMPERATURE RANGE: Withstands temperatures of -40 to 194 ±F (-40 to 90 ±C); WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
