3M - 3M 7100035806 3M™ Modular Splicing
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007042662
Amperage - 600 Amp
Applications - 600 A
Catalog Number - 7100035806
Color - Gray,Gray
Packaging
1 ea
EAN
00054007042662
Part #
181023
Catalog #
7100035806
Commercial reference
7100035806
12-Digit UPC:
054007042662
Amperage:
600 Amp
Applications:
600 A
Catalog Number:
7100035806
Color:
Gray,Gray
Country of Origin:
USA
ERP_productname:
MMM 5815-B13 MODULAR SPLICE ADAPTER
Family Brand Name:
3M
Material:
Rubber
Overall Length:
12.25 in
Product Type:
Splice
Size:
1/0 AWG; 2/0 AWG
Tensile Strength:
1058 lb/in
Type:
Modular Splice
Voltage:
15 kV
SoneparProductId:
SKU_US_25332135

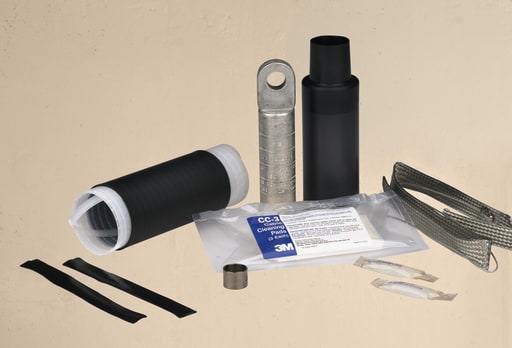

3M™ Modular Splicing Kit 5815 is a fully shielded separable connector system. It allows a complete dead front connection that is suitable for operating in submerged or locations. This kit is used with the 3M Modular Splicing System 5815 Series that is rated for 5 to 25 kV and 600 amp industrial shielded power cables. Features: Splices tape shield, wire shield, UniShield® and JCN cables; Suitable for use with a splicing kit, tap splicing kit, equipment kit and dead-end kit; ANSI Certified and IEEE Approved
