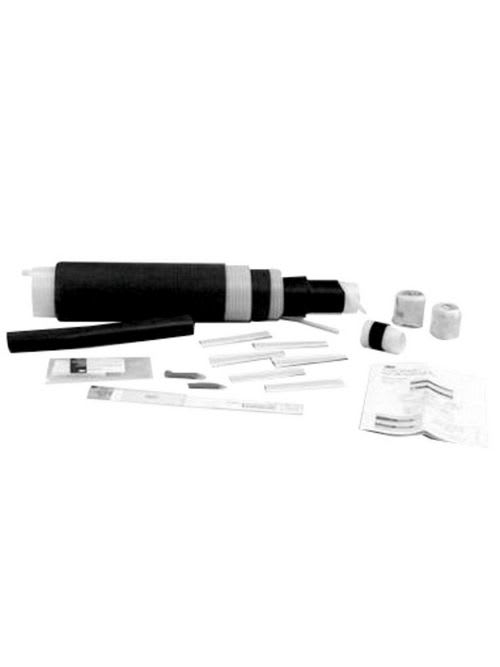

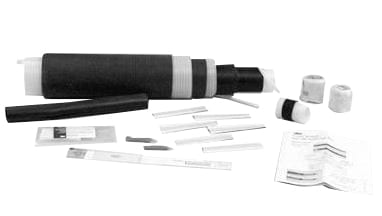

3M - 3M 7100164903 3M™ Cold Shrink QS-II

3M™ 5525A Series Cold Shrink QS-III Splice Kit is an inline splice designed to join 25/28 kV tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables. The cold shrink design fits type MV-90/MV-105 cables with copper conductors while ensuring a quick installation and better cable size transitions. The kit is 15,000 amps-rated for faults current protection. Features: Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables; Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface; Designed for inline splicing, feeder and distribution circuits, size transition splicing, direct burial installations and submerged locations; Cable has 1.07 to 1.7-in insulation O.D.; Accommodates 500 kcmil size copper conductors; Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
