3M - 3M 7100165236 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128586815
Catalog Number - 7100165236
Conductor Size - 12-10 AWG
Country of Origin - USA
ERP_productname - MMM M10-6RX NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
Packaging
1 ea
EAN
00051128586815
Part #
104192
Catalog #
7100165236
Commercial reference
7100165236
12-Digit UPC:
051128586815
Catalog Number:
7100165236
Conductor Size:
12-10 AWG
Country of Origin:
USA
ERP_productname:
MMM M10-6RX NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
Family Brand Name:
3M
Length:
0.73 Inch
Overall Length:
0.73 in
Sub Brand:
Scotchlok™
Type:
Short Sleeve, Standard
Widths:
0.38 in
SoneparProductId:
SKU_US_131141644

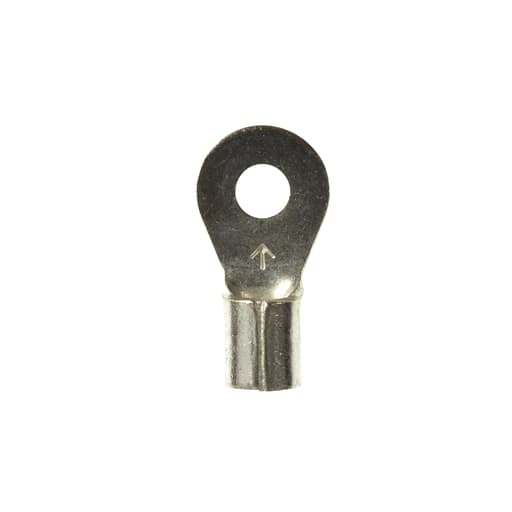

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance; Funnel-designed, seamless brass sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires
