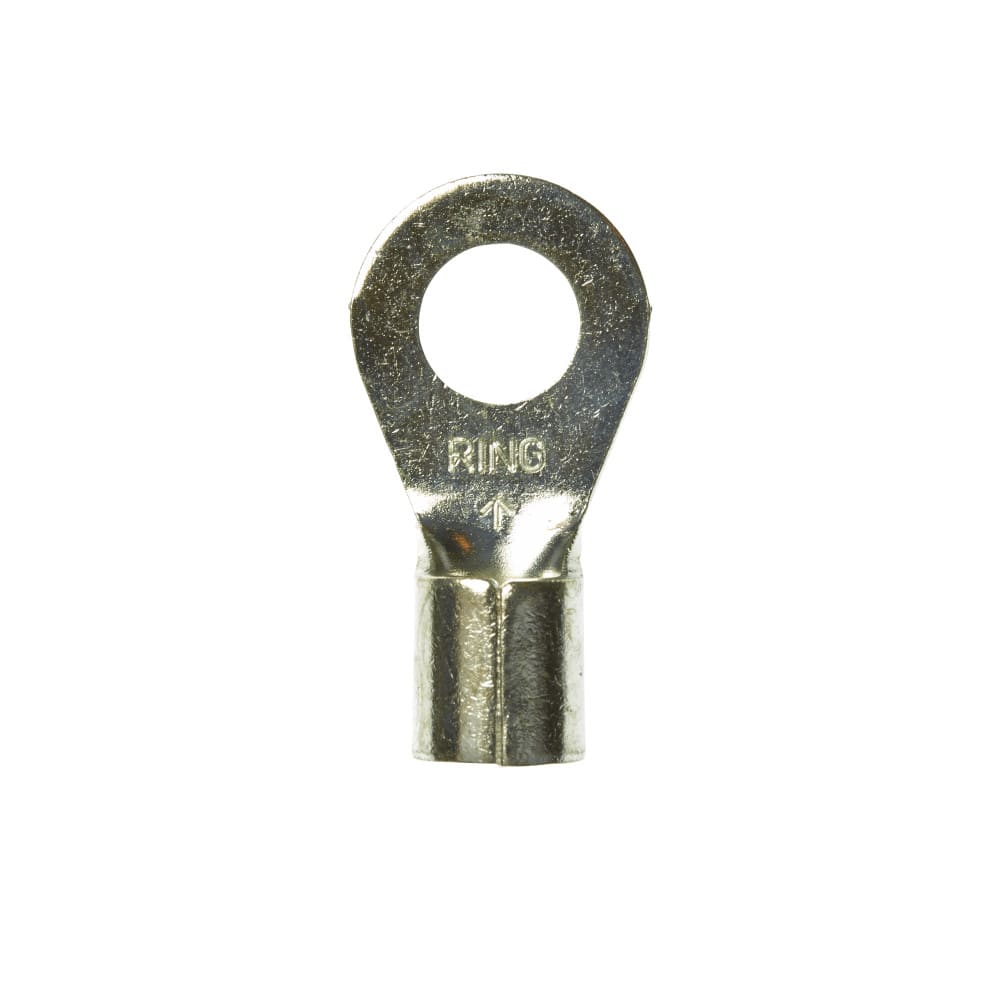

3M - 3M 7100165239 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128586990
Catalog Number - 7100165239
Conductor Size - 6 AWG
ERP_productname - MMM M6-516RX RING NON-INSULATED, 10/BOTTLE
Family Brand Name - 3M
Packaging
1 ea
EAN
10051128586997
Part #
140127
Catalog #
7100165239
Commercial reference
7100165239
12-Digit UPC:
051128586990
Catalog Number:
7100165239
Conductor Size:
6 AWG
ERP_productname:
MMM M6-516RX RING NON-INSULATED, 10/BOTTLE
Family Brand Name:
3M
Length:
1.22 Inch
Overall Length:
1.22 in
Sub Brand:
Scotchlok™
Type:
Short Sleeve, Standard
Widths:
0.63 in
SoneparProductId:
SKU_US_595431619
Ring Non-Insulated, 10/bottle : UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; 10/carton, 100/case; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; 600V-rated for building wire and 1000V for signs, fixtures or luminaires; Stud size 5/16 in; Accommodates wire size 6 AWG; Standard-style ring tongue fits around the stud; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; Beveled mouth offers easy insertion of wires; Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
