3M - 3M 7100165246 3M™ Scotchlok™ Vinyl
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587348
Catalog Number - 7100165246
Conductor Size - 22-18 AWG
Country of Origin - USA
ERP_productname - MMM MV18-38RX VINYL INSULATED BRAZED SEAM RING TONGUE TERMINAL
Packaging
1 ea
EAN
00051128587348
Part #
203821
Catalog #
7100165246
Commercial reference
7100165246
12-Digit UPC:
051128587348
Catalog Number:
7100165246
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MV18-38RX VINYL INSULATED BRAZED SEAM RING TONGUE TERMINAL
Family Brand Name:
3M
Length:
1.13 Inch
Material:
PVC
Overall Length:
1.13 in
Sub Brand:
Scotchlok™
Type:
Short Sleeve, Standard
Widths:
0.56 in
SoneparProductId:
SKU_US_29974216

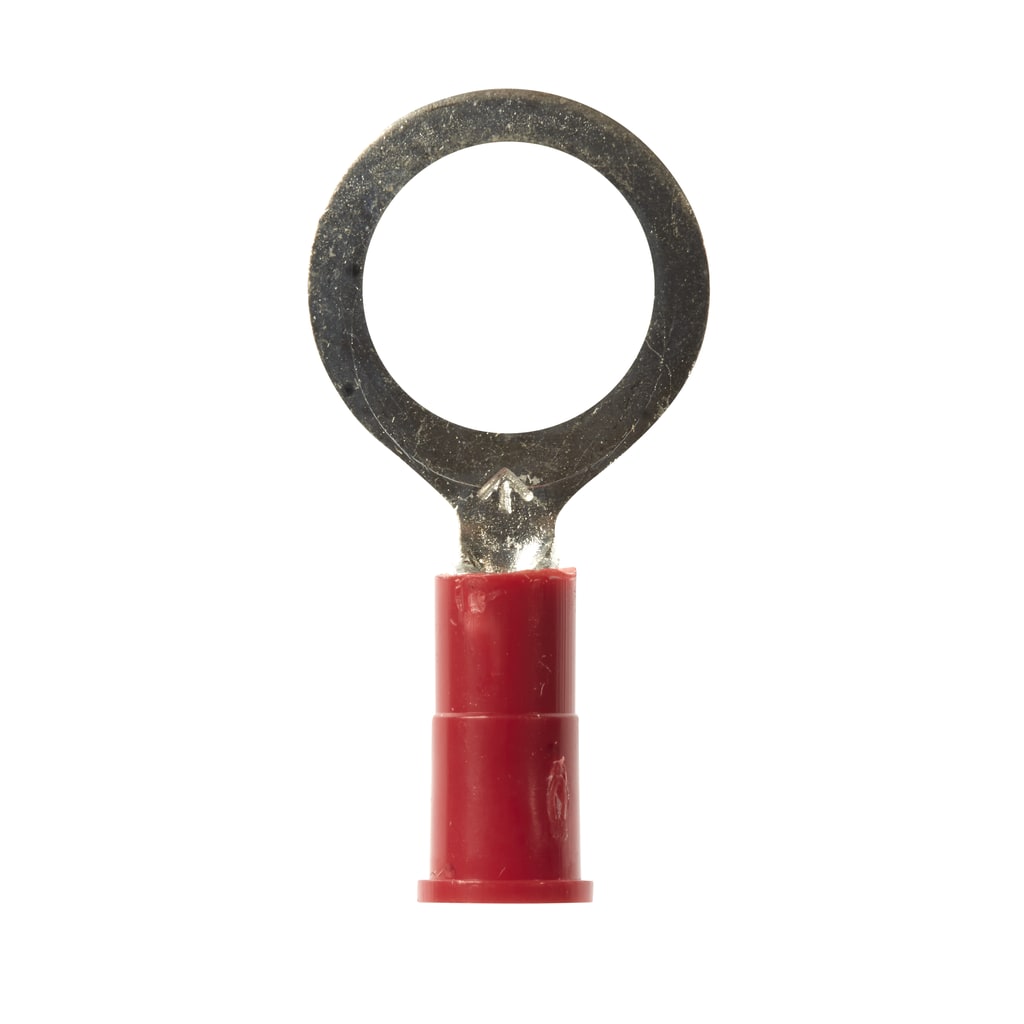

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
