3M - 3M 7100165261 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128588314
Catalog Number - M10-14FLX
Conductor Size - 12-10 AWG
ERP_productname - 3M M10-14FLX (7100165261) SCOTCHLOK NON-INSULATED BRAZED SEAM LOCKING FORKS
Family Brand Name - Scotchlok
Packaging
1 ea
EAN
00051128588314
Part #
203364
Catalog #
7100165261
Commercial reference
7100165261
12-Digit UPC:
051128588314
Catalog Number:
M10-14FLX
Conductor Size:
12-10 AWG
ERP_productname:
3M M10-14FLX (7100165261) SCOTCHLOK NON-INSULATED BRAZED SEAM LOCKING FORKS
Family Brand Name:
Scotchlok
Length:
0.94 Inch
Overall Length:
0.94 in
Widths:
0.43 in
SoneparProductId:
SKU_US_131137453

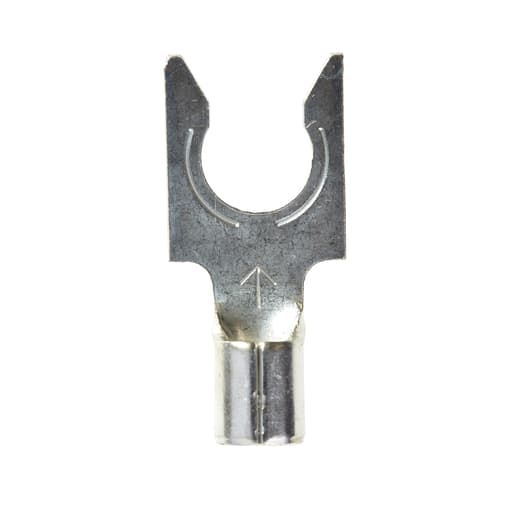

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. : Electrolytic copper construction offers good conductivity; Spring-like tongue firmly fits around the stud; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Beveled mouth offers easy insertion of wires; 50/carton, 500/case; Stud size 1/4 in; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 600V-rated for building wire and 1000V for signs, fixtures or luminaires; Accommodates wire sizes 12 to 10 AWG; Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
