3M - 3M 7100165270 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128588482
Catalog Number - 7100165270
Conductor Size - 22-18 AWG
Country of Origin - USA
ERP_productname - MMM M18-10FLX NON-INSULATED BRAZED SEAM LOCKING FORK TERMINAL
Packaging
1 ea
EAN
00051128588482
Part #
203403
Catalog #
7100165270
Commercial reference
7100165270
12-Digit UPC:
051128588482
Catalog Number:
7100165270
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM M18-10FLX NON-INSULATED BRAZED SEAM LOCKING FORK TERMINAL
Family Brand Name:
3M
Length:
0.68 Inch
Overall Length:
0.68 in
Sub Brand:
Scotchlok
Type:
Fork
Widths:
0.32 in
SoneparProductId:
SKU_US_131136933

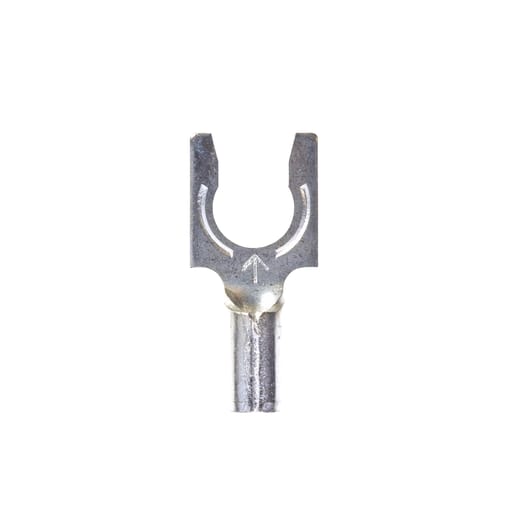

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Beveled mouth offers easy insertion of wires; Spring-like tongue firmly fits around the stud; Electrolytic copper construction offers good conductivity; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 600V-rated for building wire and 1000V for signs, fixtures or luminaires
