3M - 3M 7100165272 3M™ Scotchlok™ Non-In

CopyCopy
3M - 3M 7100165272 3M™ Scotchlok™ Non-In

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128588505

  • Catalog Number - 7100165272

  • Conductor Size - 18 AWG

  • Country of Origin - USA

  • ERP_productname - MMM M18-6FLX NON-INSULATED BRAZED SEAM LOCKING FORK TERMINAL

Packaging

  • 1 ea

EAN

00051128588505

Part #

203418

Catalog #

7100165272

Commercial reference

7100165272

12-Digit UPC:

051128588505

Catalog Number:

7100165272

Conductor Size:

18 AWG

Country of Origin:

USA

ERP_productname:

MMM M18-6FLX NON-INSULATED BRAZED SEAM LOCKING FORK TERMINAL

Family Brand Name:

Scotchlok

Length:

0.68 Inch

Overall Length:

0.68 in

Sub Brand:

Scotchlok

Type:

Fork

Widths:

0.25 in

SoneparProductId:

SKU_US_131136840

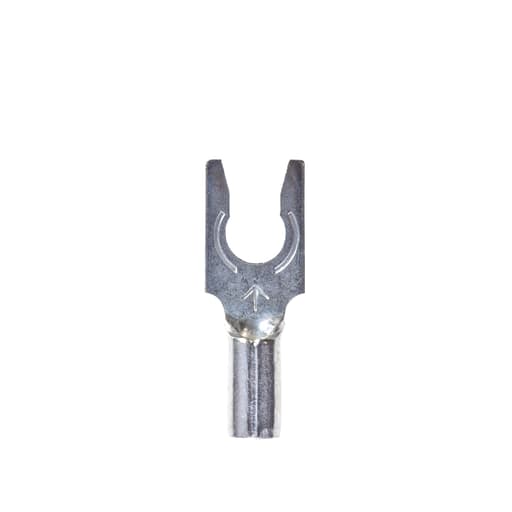

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Beveled mouth offers easy insertion of wires; Spring-like tongue firmly fits around the stud; Electrolytic copper construction offers good conductivity; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 600V-rated for building wire and 1000V for signs, fixtures or luminaires
