3M - 3M 7100165292 3M™ Scotchlok™ Vinyl
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589359
Catalog Number - 7100165292
Conductor Size - 22-18 AWG
Country of Origin - USA
ERP_productname - MMM MVI18-250DFX VINYL INS BUTTED SEAM FEMALE DISCONNECT W/INTERLOCKING BARREL
Packaging
1 ea
EAN
00051128589359
Part #
203842
Catalog #
7100165292
Commercial reference
7100165292
12-Digit UPC:
051128589359
Catalog Number:
7100165292
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MVI18-250DFX VINYL INS BUTTED SEAM FEMALE DISCONNECT W/INTERLOCKING BARREL
Family Brand Name:
3M
Length:
0.83 Inch
Material:
PVC
Overall Length:
0.83 in
Sub Brand:
Scotchlok™
Type:
Disconnect
SoneparProductId:
SKU_US_31799518

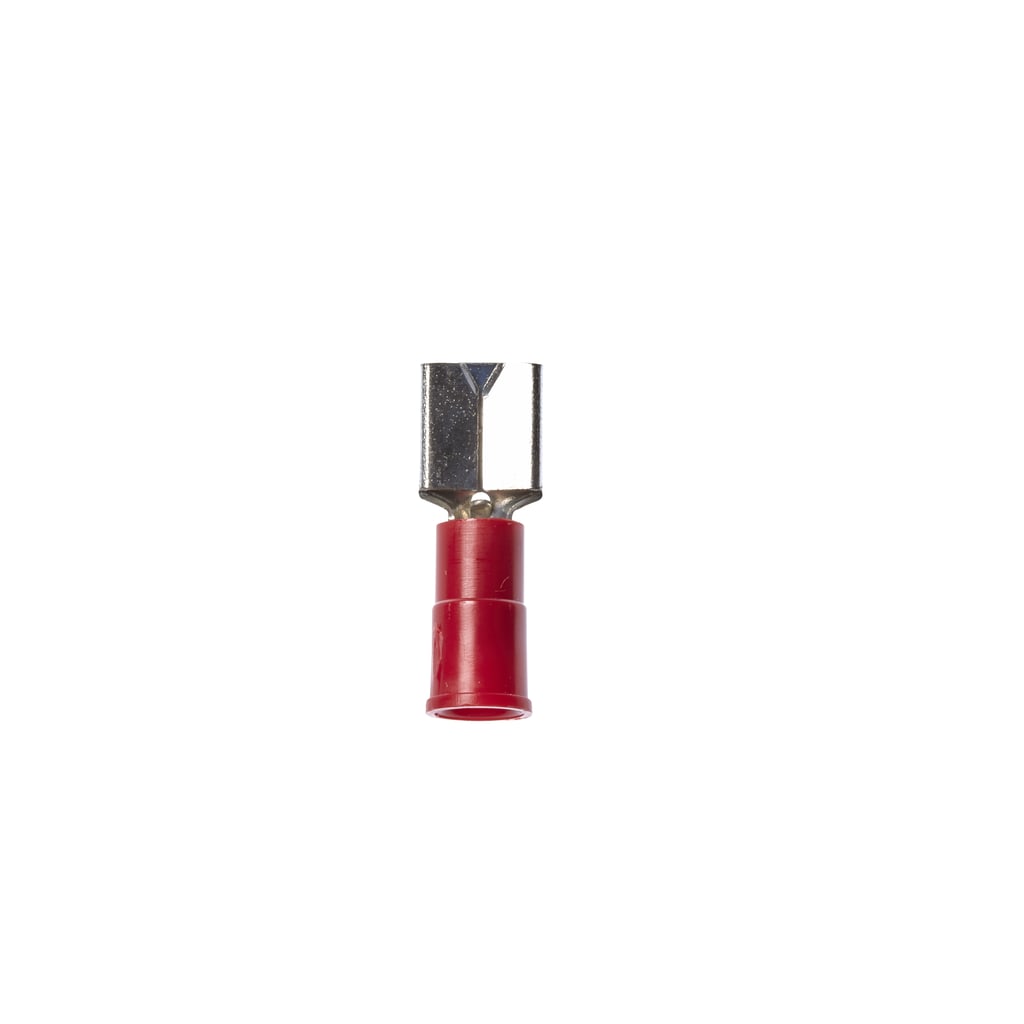

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. Features: Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Dents and rolled edges of this female disconnect terminal offer excellent holding force; Allows for quick and easy disconnect of wires; Mates with 0.25-in wide male tab; Made of durable brass for good conductivity and has corrosion-resistant tin plating; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
