3M - 3M 7100165295 3M™ Scotchlok™ Non-In
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589403
Catalog Number - M18-14R/SX
Conductor Size - 18 AWG
ERP_productname - MMM M18-14R/SX NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
Family Brand Name - Scotchlok
Packaging
1 ea
EAN
00051128589403
Part #
104252
Catalog #
M18-14R/SX
Commercial reference
M18-14R/SX
12-Digit UPC:
051128589403
Catalog Number:
M18-14R/SX
Conductor Size:
18 AWG
ERP_productname:
MMM M18-14R/SX NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
Family Brand Name:
Scotchlok
Length:
0.89 Inch
Overall Length:
0.89 in
Widths:
0.47 in
SoneparProductId:
SKU_US_29733991

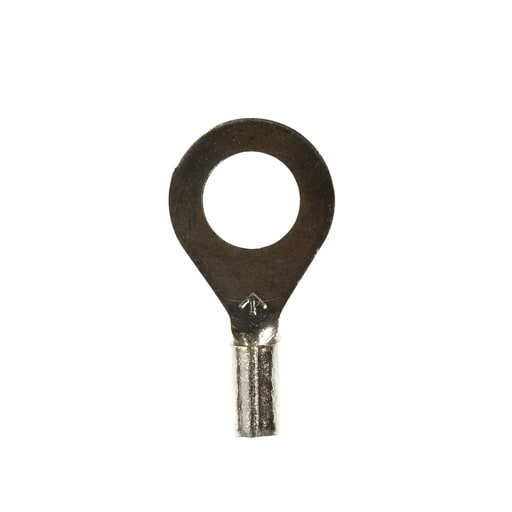

3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. : UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 600V-rated for building wire and 1000V for signs, fixtures or luminaires; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Standard-style ring tongue fits around the stud; 100/carton, 500/case; Beveled mouth offers easy insertion of wires; Accommodates wire sizes 22 to 18 AWG; Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Stud size 1/4 in
