3M - 3M 7100165300 3M™ Scotchlok™ Vinyl
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589502
Catalog Number - MV18-6FB/SX
Conductor Size - 22-18 AWG
ERP_productname - MMM MV18-6FB/SX BLOCK FORK VINYL INSULATED, 100/BOTTLE
Family Brand Name - Scotchlok
Packaging
1 ea
EAN
00051128589502
Part #
135890
Catalog #
MV18-6FB/SX
Commercial reference
MV18-6FB/SX
12-Digit UPC:
051128589502
Catalog Number:
MV18-6FB/SX
Conductor Size:
22-18 AWG
ERP_productname:
MMM MV18-6FB/SX BLOCK FORK VINYL INSULATED, 100/BOTTLE
Family Brand Name:
Scotchlok
Length:
0.85 Inch
Overall Length:
0.85 in
Widths:
0.25 in
SoneparProductId:
SKU_US_73740439

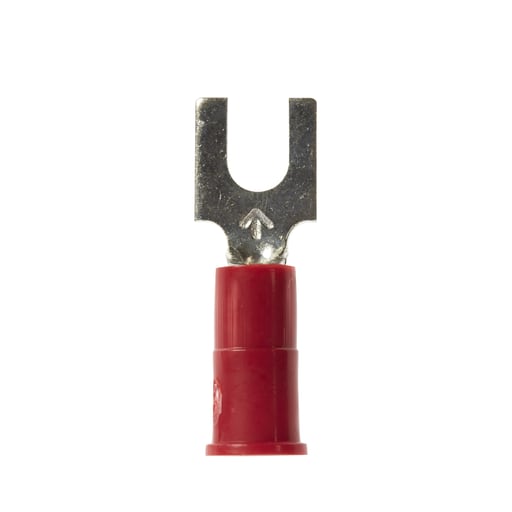

3M™ Scotchlok™ Color-Coded Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. : Accommodates wire sizes 22 to 18 AWG; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Stud size #6; Suitable for use in a terminal block; Electrolytic copper construction offers good conductivity; Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 100/carton, 500/case; 600V-rated for building wire and 1000V for signs, fixtures or luminaires
