3M - 3M 7100166938 3M™ Scotchlok™ IDC C
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007200901
Catalog Number - 7100166938
Color - Blue
Conductor Size - 18-16 AWG/18-14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
10054007200908
Part #
168102
Catalog #
7100166938
Commercial reference
7100166938
12-Digit UPC:
054007200901
Catalog Number:
7100166938
Color:
Blue
Conductor Size:
18-16 AWG/18-14 AWG
Country of Origin:
USA
ERP_productname:
MMM 560B-BOX IDC CONNECTOR (100/BOX)
Family Brand Name:
Scotchlok
Product Type:
Connector
Sub Brand:
Scotchlok
Type:
Insulation Displacement
Voltage:
600 Volt
Wire Size:
18-16 AWG / 14 AWG Stranded
SoneparProductId:
SKU_US_198596821

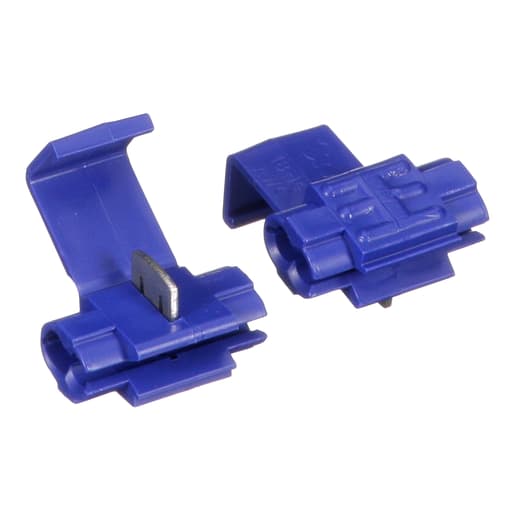

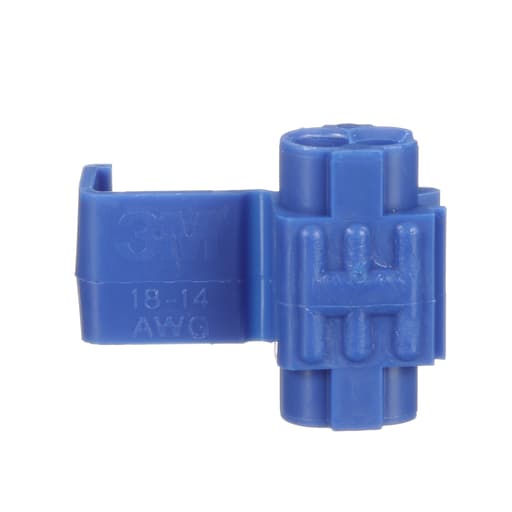

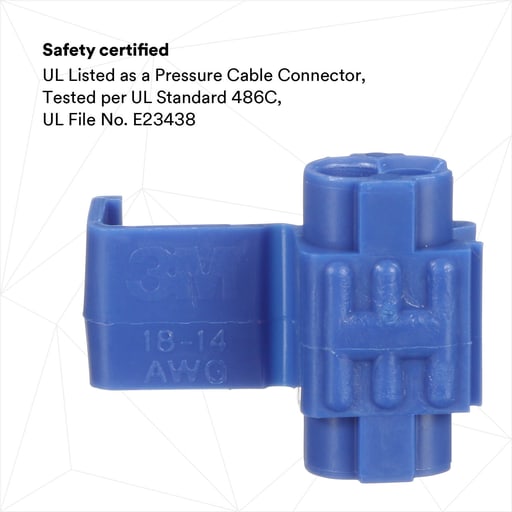

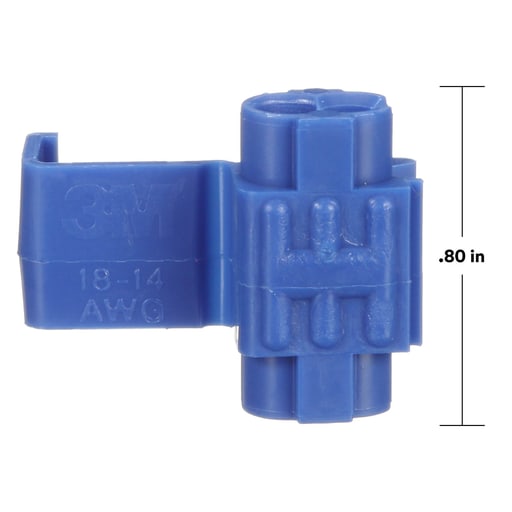

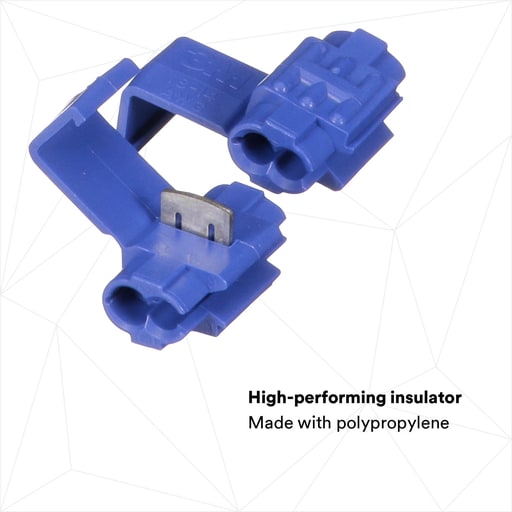

3M™ Scotchlok™ 560B IDC Double Run or Tap Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector insulation is manufactured from polypropylene and is ideal for tap or parallel splicing. It is 600V-rated for building wire and 1000V-rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C). Features: CONDUCTIVE U-CONTACT: Tin-plated brass helps conductivity and resistance to corrosion; HIGH-PERFORMING INSULATOR: Made with polypropylene; SAFETY CERTIFIED: UL Listed as a Pressure Cable Connector, Tested per UL Standard 486C, UL File No. E23438; COMPATIBILITY NOTE: UL Listed for AWG only; UL listed for AWG only
