3M - 3M 7100166939 3M™ Scotchlok™ IDC C
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007008392
Catalog Number - 7100166939
Color - Blue
Conductor Size - 18-16 AWG/18-14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
10054007008399
Part #
165804
Catalog #
7100166939
Commercial reference
7100166939
12-Digit UPC:
054007008392
Catalog Number:
7100166939
Color:
Blue
Conductor Size:
18-16 AWG/18-14 AWG
Country of Origin:
USA
ERP_productname:
MMM 560BOXED 100 SELF-STRIP CONN
Family Brand Name:
Scotchlok
Product Type:
Connector
Sub Brand:
Scotchlok
Type:
Insulation Displacement
Voltage:
600 Volt
Wire Size:
18-16 AWG / 14 AWG Stranded
SoneparProductId:
SKU_US_193575514

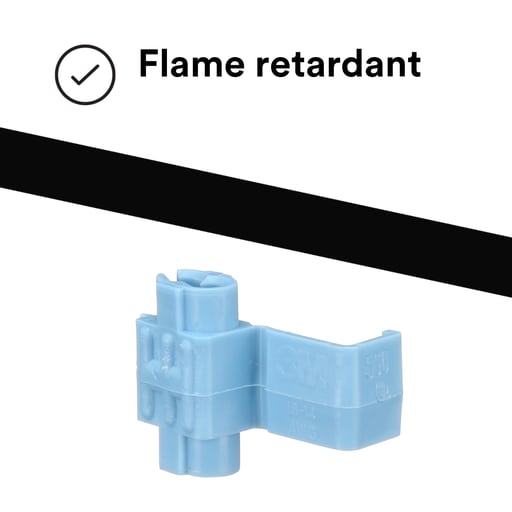

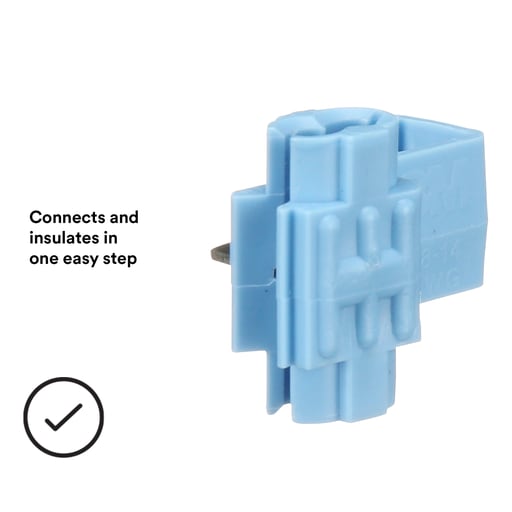

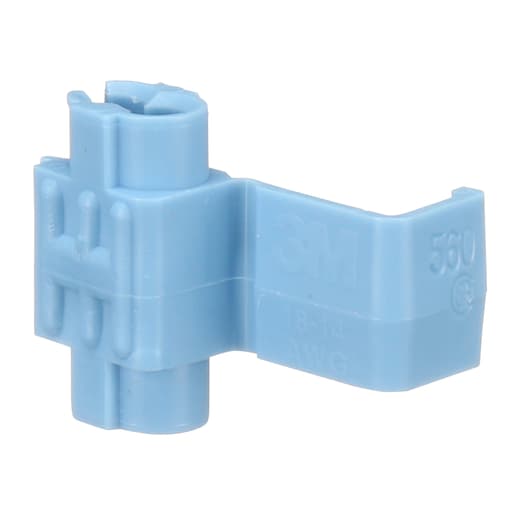

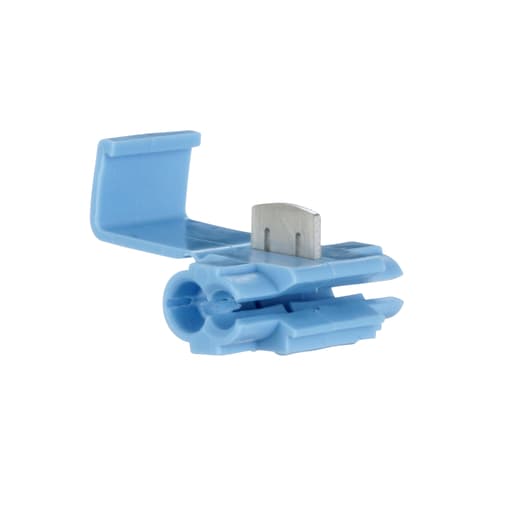

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant. Features: Blue, polypropylene-insulated wire connector is suitable for tap or parallel splicing; Accommodates 18 to 14 AWG solid/stranded, tinned/untinned copper conductors; UL Listed, UL 486D approved, and RoHS 2011/65/EU Compliant; Operating temperature 221F (105C) with a 600 volts maximum for building wire, and a 1000 volts maximum for signs, fixtures and luminaires.; UL listed for AWG only
