3M - 3M 7100167488 3M™ Cold Shrink QS-II

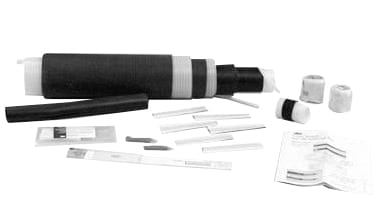

The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm.). Features: Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables; Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface; Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables; Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection; Rated for 15 kV class cables; Factory-tested partial discharge and AC ensure reliability
