3M - 3M 7620-T-95-3-RJS Indoor 3 Conductor Cables Inside Cabinet Termination Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007048107
Applications - Indoor
Catalog Number - 7000132806
Conductor Size - 2 AWG; 4 AWG; 6 AWG; 8 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00054007048107
Part #
306728
Catalog #
7000132806
Commercial reference
7000132806
12-Digit UPC:
054007048107
Applications:
Indoor
Catalog Number:
7000132806
Conductor Size:
2 AWG; 4 AWG; 6 AWG; 8 AWG
Country of Origin:
USA
ERP_productname:
3M 7620-T-95-3-RJS (7000132806) COLD SHRINK QT-III TERMINATION KIT 7600-T-3-RJS SERIES FOR 5-35 KV
Family Brand Name:
3M
Type:
QT-III
Voltage:
5 kV
SoneparProductId:
SKU_US_26339044

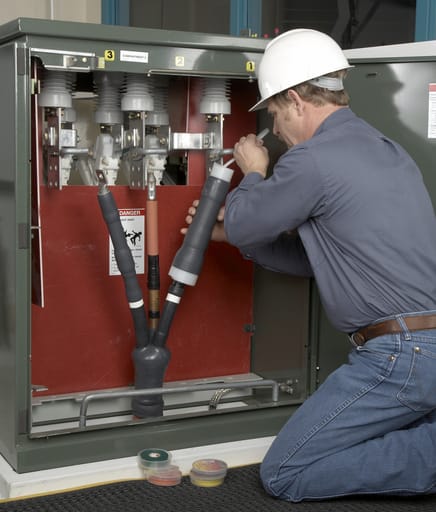

3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications and cabinet-mount installations; Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
