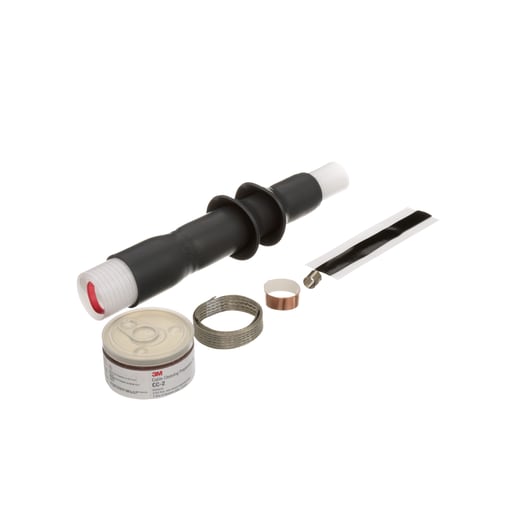

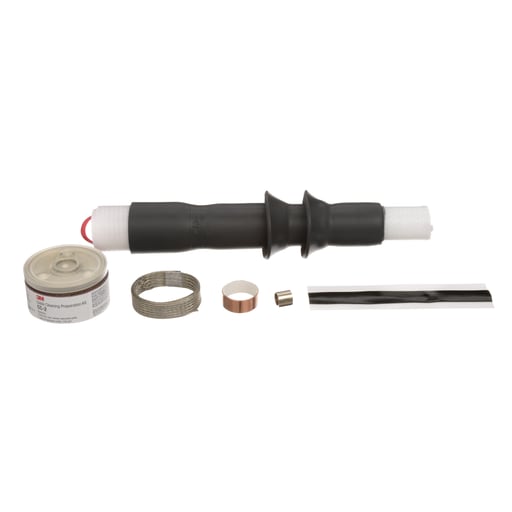

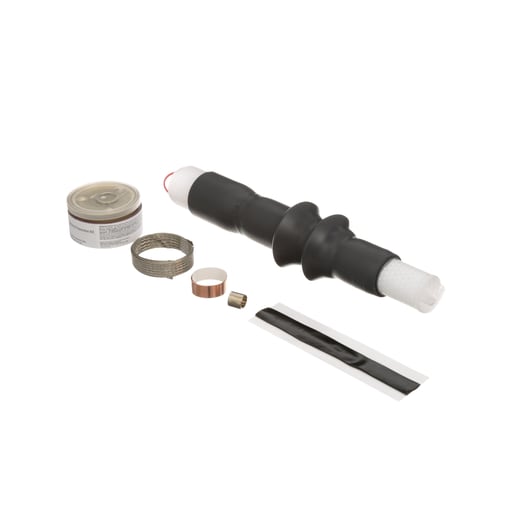

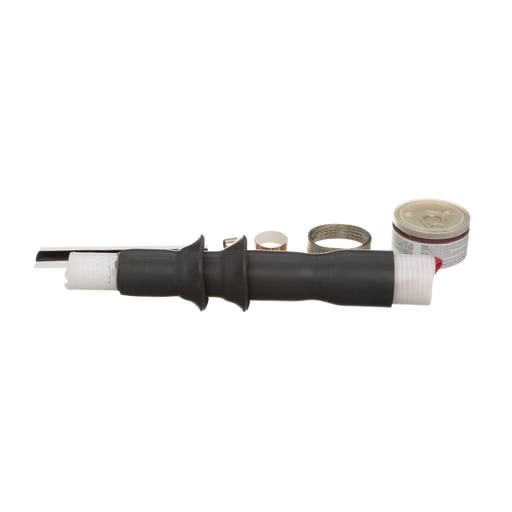

3M - 3M 7621-S-2 Cold Shrink 3 Terms/Kit 2 Skirt Termination Kit

Essential specifications

12-Digit UPC - 054007421696
Applications - For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use
Catalog Number - 7000133210
Conductor Size - 4-3/0 AWG
Country of Origin - USA

Packaging

1 ea

EAN

00054007421696

Part #

174937

Catalog #

7000133210

Commercial reference

7000133210

12-Digit UPC:

054007421696

Applications:

For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use

Catalog Number:

7000133210

Conductor Size:

4-3/0 AWG

Country of Origin:

USA

ERP_productname:

3M 7621-S-2 (7000133210) COLD SHRINK QT-III TERMINATION KIT 7620-S, 7680-S & 7690-S SERIES

Family Brand Name:

Material:

Rubber

Number of Conductors:

Type:

QT-III

Voltage:

5 kV

SoneparProductId:

SKU_US_25982399

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 2 Skirt Termination 7621-S-2 has a conductor size range for 5 kV: 2-3/0 AWG and 8 kV: 4-2/0 AWG. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
