3M - 3M 7624-T-110-3-RJS Indoor 3 Conductor Cables Inside Cabinet Termination Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007047124
Applications - Indoor
Catalog Number - 7000132786
Conductor Size - 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
Country of Origin - USA
Packaging
1 ea
EAN
00054007047124
Part #
421363
Catalog #
7000132786
Commercial reference
7000132786
12-Digit UPC:
054007047124
Applications:
Indoor
Catalog Number:
7000132786
Conductor Size:
250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
Country of Origin:
USA
ERP_productname:
3M 7624-T-110-3-RJS (7000132786) COLD SHRINK QT-III TERMINATION KIT 7600-T-3-RJS SERIES FOR 5-35 KV
Family Brand Name:
3M
Type:
QT-III
Voltage:
15 kV
SoneparProductId:
SKU_US_26146684

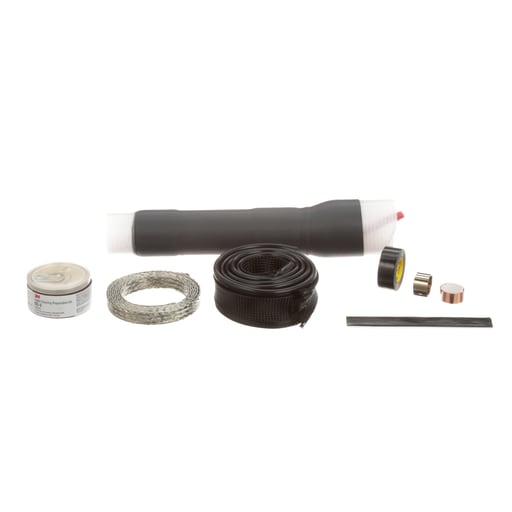

3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7600-T-3RJS Series are tubular and designed to accommodate medium voltage 3/C shielded power cable kits for cabinet-mount installations and can be used on cables with or without ground wires. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications and cabinet-mount installations; Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
