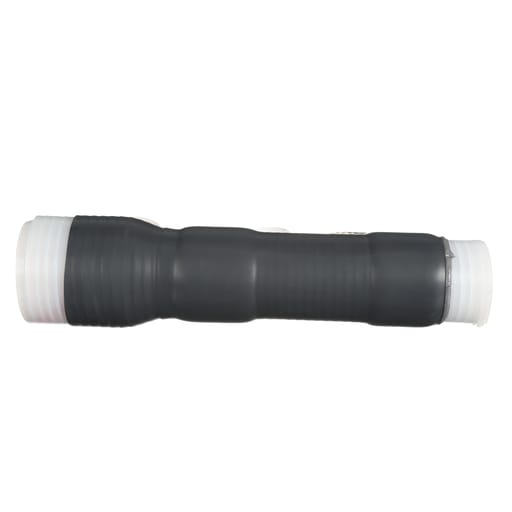

3M - 3M 7625-T-110 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Essential specifications

12-Digit UPC - 054007417620
Applications - For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas
Catalog Number - 7000006103
Conductor Size - 500-1500 kcmil
Country of Origin - USA

Packaging

1 ea

EAN

00054007417620

Part #

177868

Catalog #

7000006103

Commercial reference

7000006103

12-Digit UPC:

054007417620

Applications:

For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

Catalog Number:

7000006103

Conductor Size:

500-1500 kcmil

Country of Origin:

USA

ERP_productname:

MMM 7625-T-110 COLD SHRNK TRMNTN

Family Brand Name:

Material:

Rubber

Number of Conductors:

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_25934709

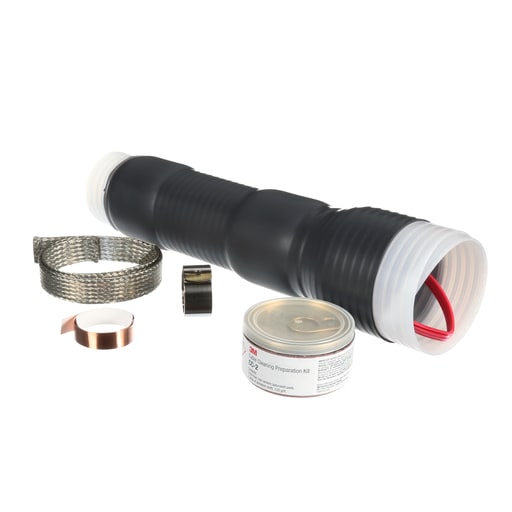

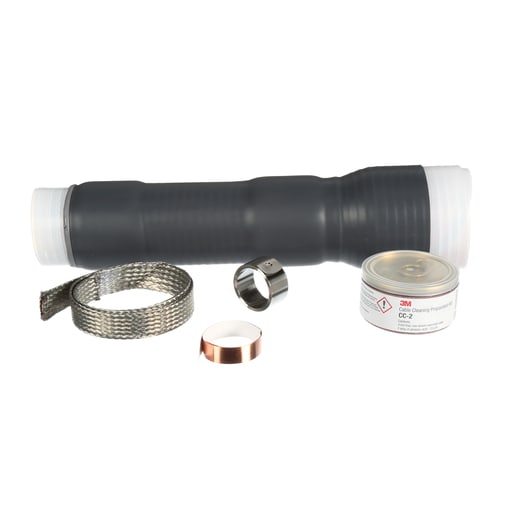

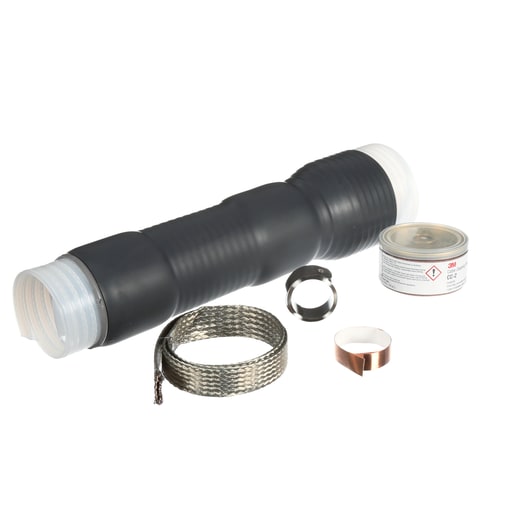

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7625-T-110 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil and 15 kV: 500-1000 kcmil. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Non-tracking, molded, silicone rubber insulation offers durability; Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
