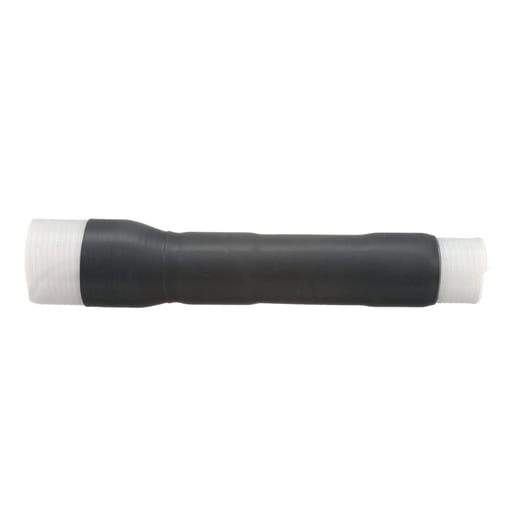

3M - 3M 7644-T-110 Cold Shrink Non-Skirted Termination Kit

CopyCopy
3M - 3M 7644-T-110 Cold Shrink Non-Skirted Termination Kit

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007417668

  • Applications - For Terminating Solid Dielectric Jacketed Concentric Neutral and Concentric Neutral Power Cables, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

  • Catalog Number - 7000140740

  • Conductor Size - 4/0 AWG-750 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00054007417668

Part #

449866

Catalog #

7000140740

Commercial reference

7000140740

12-Digit UPC:

054007417668

Applications:

For Terminating Solid Dielectric Jacketed Concentric Neutral and Concentric Neutral Power Cables, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

Catalog Number:

7000140740

Conductor Size:

4/0 AWG-750 kcmil

Country of Origin:

USA

ERP_productname:

3M 7644-T-110 (7000140740) COLD SHRINK QT-III TERMINATION KIT 7640-T & 7650-T SERIES FOR 5-35 KV

Family Brand Name:

3M

Material:

Rubber

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_26610264

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7644-T-110 has a conductor size range for 5 kV: 500-750 kcmil, 8 kV: 350-700 kcmil and 15 kV: 4/0 AWG-500 kcmil. Features: Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Non-tracking, silicone rubber insulation offers durability
