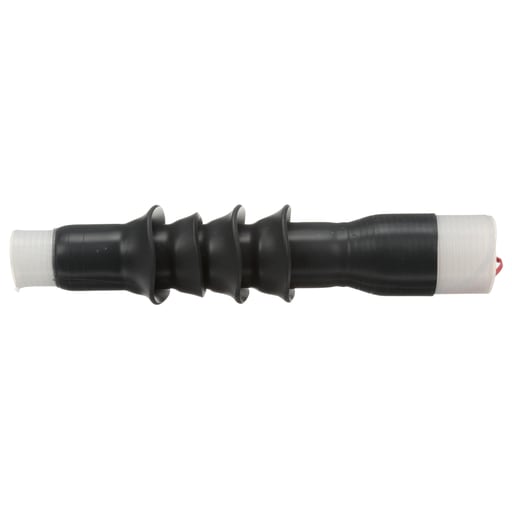

3M - 3M 7653-S-4 Cold Shrink 4 Skirt Termination

Essential specifications

12-Digit UPC - 054007421924
Applications - For Terminating Solid Dielectric Power Cable with Tape Shield, Wire-Over-Tape Shield and Longitudinally Corrugated Shield, Solid Dielectric Insulations, Such as Polyethylene, XLPE and EPR, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Indoor Use
Catalog Number - 7000140709
Conductor Size - 1 AWG-500 kcmil
Country of Origin - USA

Packaging

1 ea

EAN

00054007421924

Part #

243137

Catalog #

7000140709

Commercial reference

7000140709

12-Digit UPC:

054007421924

Applications:

For Terminating Solid Dielectric Power Cable with Tape Shield, Wire-Over-Tape Shield and Longitudinally Corrugated Shield, Solid Dielectric Insulations, Such as Polyethylene, XLPE and EPR, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Indoor Use

Catalog Number:

7000140709

Conductor Size:

1 AWG-500 kcmil

Country of Origin:

USA

ERP_productname:

3M 7653-S-4 OUTDOOR COLD SHRINK TERMINATION 2/0 JCN CABLE

Family Brand Name:

Length:

12-1/4 Inch

Material:

Rubber

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_26613414

3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination, 7653-S-4 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil and 25/28 kV: 2-4/0 AWG. Features: Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
