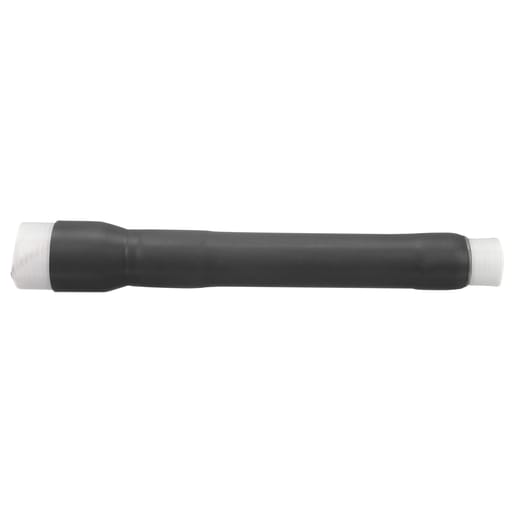

3M - 3M 7653-T-150 Cold Shrink Non-Skirted Termination Kit

CopyCopy
3M - 3M 7653-T-150 Cold Shrink Non-Skirted Termination Kit

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007417729

  • Applications - For Terminating Solid Dielectric Jacketed Concentric Neutral and Concentric Neutral Power Cables, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

  • Catalog Number - 7000140704

  • Conductor Size - 1 AWG-500 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00054007417729

Part #

249989

Catalog #

7000140704

Commercial reference

7000140704

12-Digit UPC:

054007417729

Applications:

For Terminating Solid Dielectric Jacketed Concentric Neutral and Concentric Neutral Power Cables, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

Catalog Number:

7000140704

Conductor Size:

1 AWG-500 kcmil

Country of Origin:

USA

ERP_productname:

3M 7653-T-150

Family Brand Name:

3M

Material:

Rubber

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_26610124

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7653-T-150 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil, 25/28 kV: 2-4/0 AWG and 35 kV: 2-2/0 AWG. Features: Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Non-tracking, silicone rubber insulation offers durability
