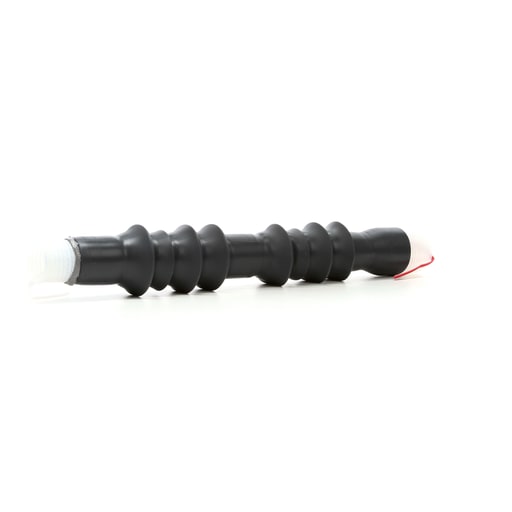

3M - 3M 7663-S-8 Cold Shrink 8 Skirt Termination
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007424338
Applications - Outdoor
Catalog Number - 7000006125
Conductor Size - 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country of Origin - USA
Packaging
1 ea
EAN
00054007424338
Part #
249988
Catalog #
7000006125
Commercial reference
7000006125
12-Digit UPC:
054007424338
Applications:
Outdoor
Catalog Number:
7000006125
Conductor Size:
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country of Origin:
USA
ERP_productname:
3M 7663S8 5-35 KV INSULATION OD 0.72-1.29 IN 1/KIT
Family Brand Name:
3M
Number of Conductors:
1
Type:
QT-III
Voltage:
15 kV
SoneparProductId:
SKU_US_26511105
3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination 7663-S-8 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil, 25/28 kV: 2-4/0 AWG and 35 kV: 2-2/0 AWG. Features: Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
