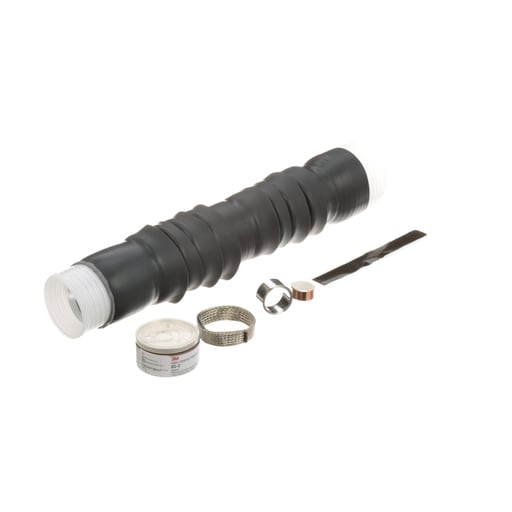

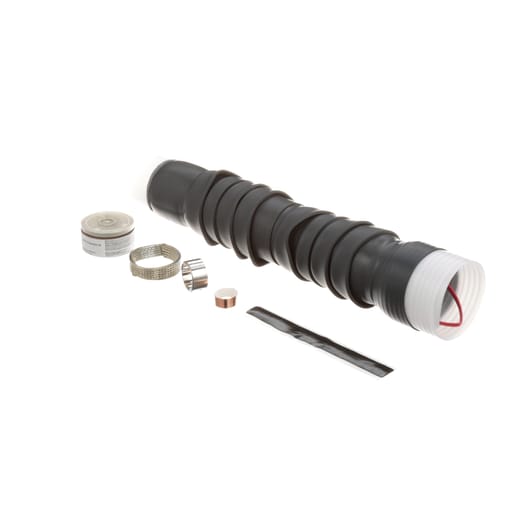

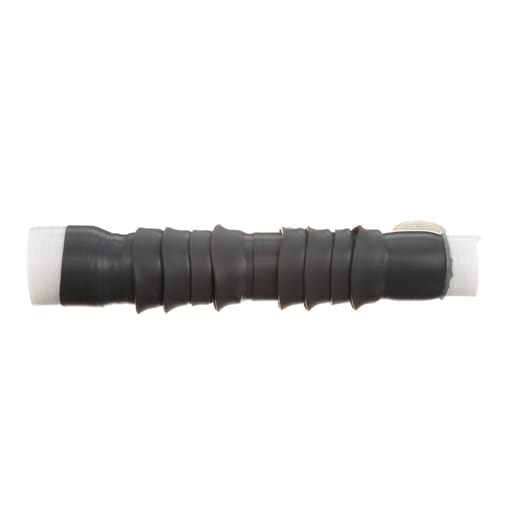

3M - 3M 7686-S-8 Cold Shrink 3 Terms/Kit 8 Skirt Termination Kit

Essential specifications

12-Digit UPC - 054007424680
Applications - Outdoor
Catalog Number - 7000006130
Conductor Size - 1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country of Origin - USA

Packaging

1 ea

EAN

00054007424680

Part #

152807

Catalog #

7000006130

Commercial reference

7000006130

12-Digit UPC:

054007424680

Applications:

Outdoor

Catalog Number:

7000006130

Conductor Size:

1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil

Country of Origin:

USA

ERP_productname:

3M 7686-S-8 (7000006130) COLD SHRINK QT-III TERMINATION KIT 7620-S, 7680-S & 7690-S SERIES

Family Brand Name:

Number of Conductors:

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_26767627

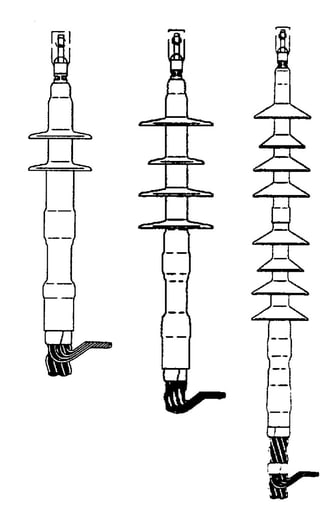

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 8 Skirt Termination Kit 7686-S-8 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil, 25/28 kV: 900-1750 kcmil and 35 kV: 700-1500 kcmil. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
