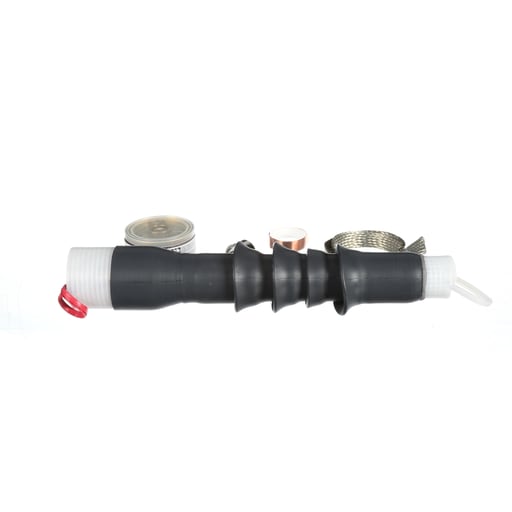

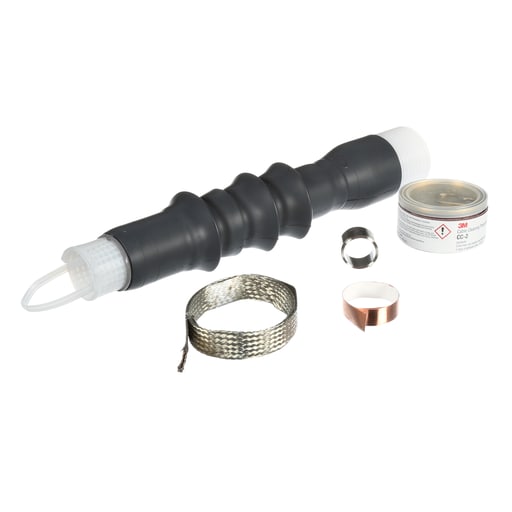

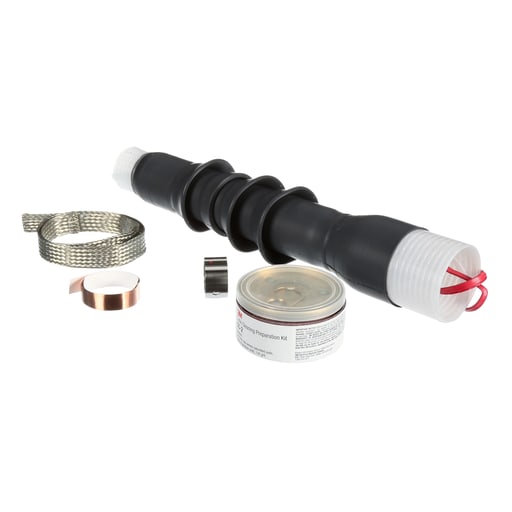

3M - 3M 7692-S-4 Cold Shrink 4 Skirt Termination, 3 Terms per Kit

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7692-S-4 has a conductor size range for 5 kV: 4/0 AWG-400 kcmil, 8 kV: 3/0 AWG-300 kcmil, 15 kV: 2-4/0 AWG and 25/28 kV: 2-1/0 AWG. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
