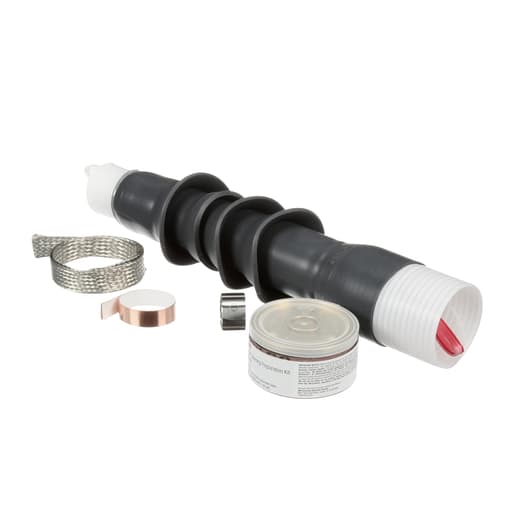

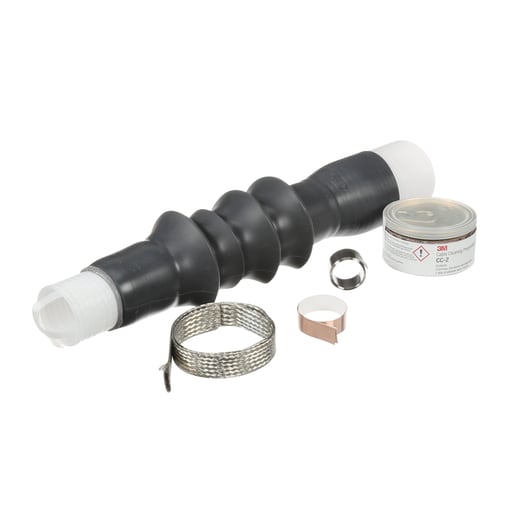

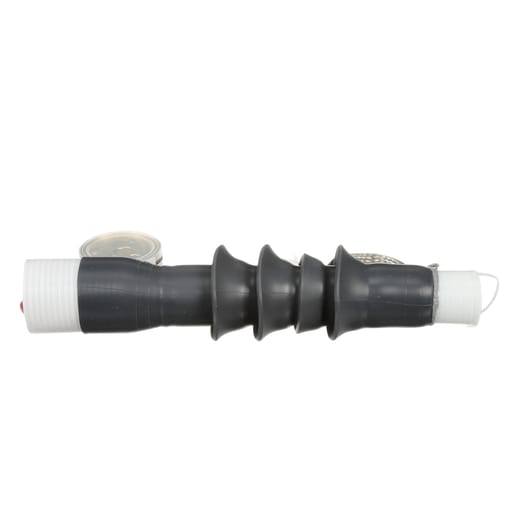

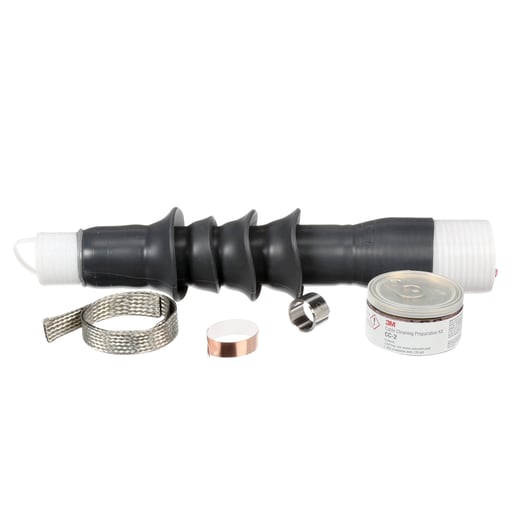

3M - 3M 7693-S-4 Cold Shrink 3 Terms/Kit 4 Skirt Termination Kit

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007422129

  • Applications - For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and Sunshield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use

  • Catalog Number - 7000031602

  • Conductor Size - 1 AWG-500 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00054007422129

Part #

114437

Catalog #

7000031602

Commercial reference

7000031602

12-Digit UPC:

054007422129

Applications:

For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and Sunshield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use

Catalog Number:

7000031602

Conductor Size:

1 AWG-500 kcmil

Country of Origin:

USA

ERP_productname:

3M 7693-S-4 (7000031602) COLD SHRINK QT-III TERMINATION KIT 7620-S, 7680-S & 7690-S SERIES

Family Brand Name:

3M

Material:

Rubber

Number of Conductors:

1

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_25850082

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7693-S-4 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil and 25/28 kV: 2-4/0 AWG. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
