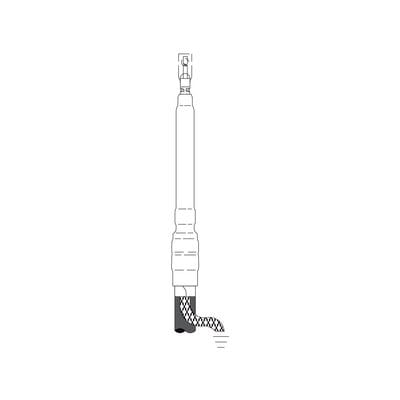

3M - 3M 7693-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Essential specifications

12-Digit UPC - 054007417781
Applications - For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas
Catalog Number - 7000006104
Conductor Size - 1 AWG-500 kcmil
Country of Origin - USA

Packaging

1 ea

EAN

00054007417781

Part #

270450

Catalog #

7000006104

Commercial reference

7000006104

12-Digit UPC:

054007417781

Applications:

For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

Catalog Number:

7000006104

Conductor Size:

1 AWG-500 kcmil

Country of Origin:

USA

ERP_productname:

MMM 7693-T-150

Family Brand Name:

Material:

Rubber

Type:

QT-III

Voltage:

15 kV

SoneparProductId:

SKU_US_25850163

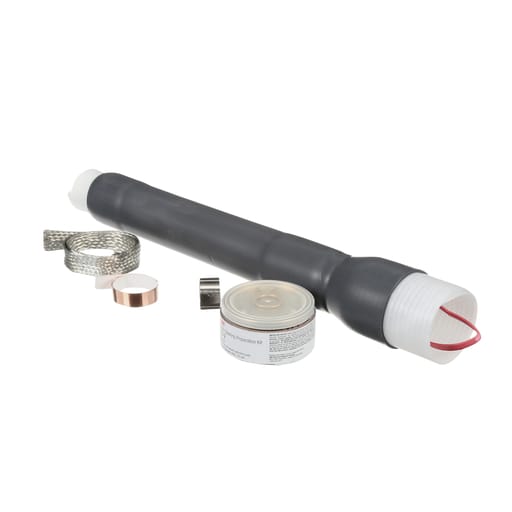

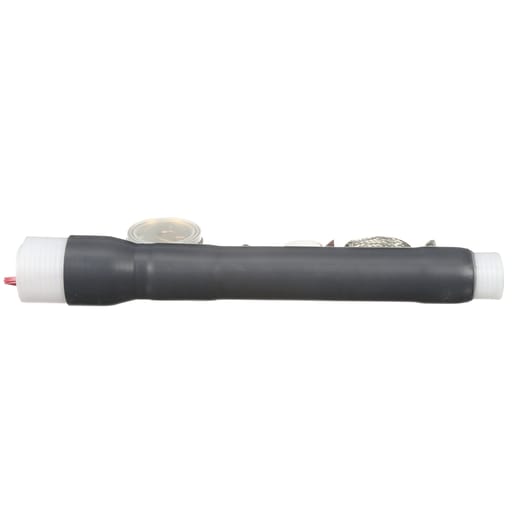

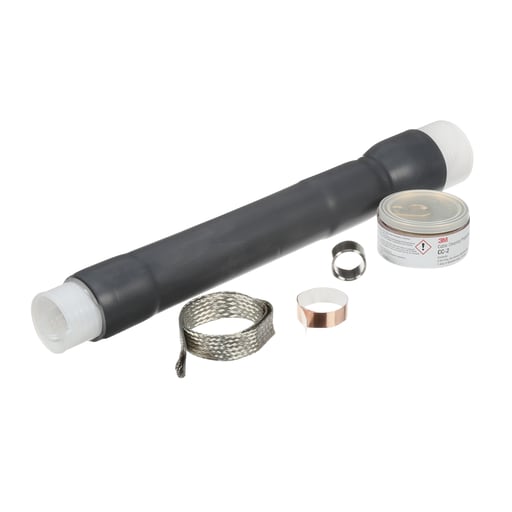

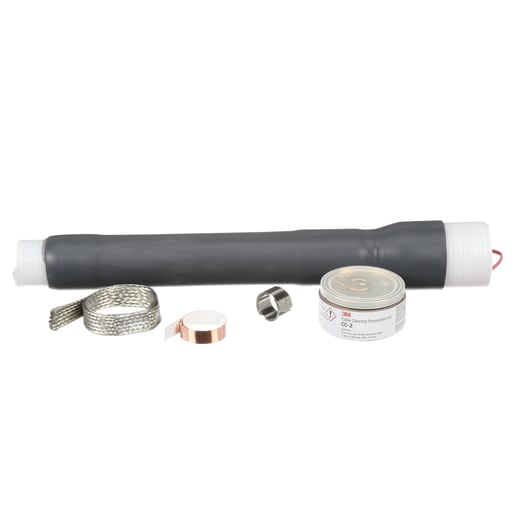

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7693-T-150 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil, 25/28 kV: 2-4/0 AWG and 35 kV: 2-2/0 AWG. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Non-tracking, molded, silicone rubber insulation offers durability; Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
