3M - 3M 7695-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

CopyCopy
3M - 3M 7695-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 054007417798

  • Applications - For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

  • Catalog Number - 7000006105

  • Conductor Size - 3/0 AWG-1500 kcmil

  • ERP_productname - MMM 7000006105 3M? COLD SHRINK QT-III TERMINATION KIT 7620-T & 7690-T SERIES FOR 5-35 KV

Packaging

  • 1 ea

EAN

00054007417798

Part #

449867

Catalog #

7000006105

Commercial reference

7000006105

12-Digit UPC:

054007417798

Applications:

For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas

Catalog Number:

7000006105

Conductor Size:

3/0 AWG-1500 kcmil

ERP_productname:

MMM 7000006105 3M? COLD SHRINK QT-III TERMINATION KIT 7620-T & 7690-T SERIES FOR 5-35 KV

Family Brand Name:

3M

Material:

Rubber

Type:

QT-III

Voltage:

892.857/5,000/8,000/15,000/35,000 Volt

SoneparProductId:

SKU_US_317522405

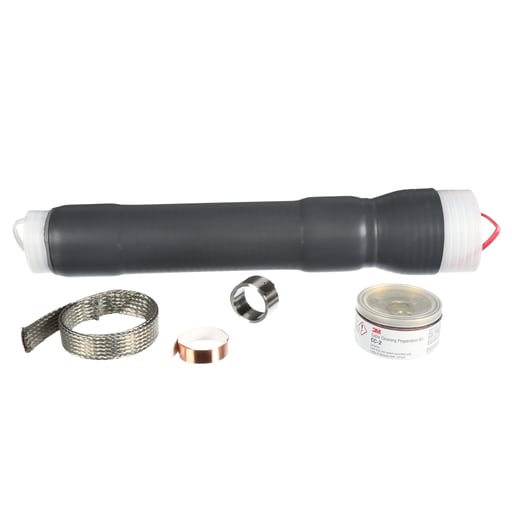

3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7695-T-150 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil, 15 kV: 500-1000 kcmil, 25/28 kV: 250-800 kcmil and 35 kV: 3/0 AWG-600 kcmil. : Non-tracking, molded, silicone rubber insulation offers durability; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations; Provides a void-free seal to tape shield, wire shield and UniShield® power cables
