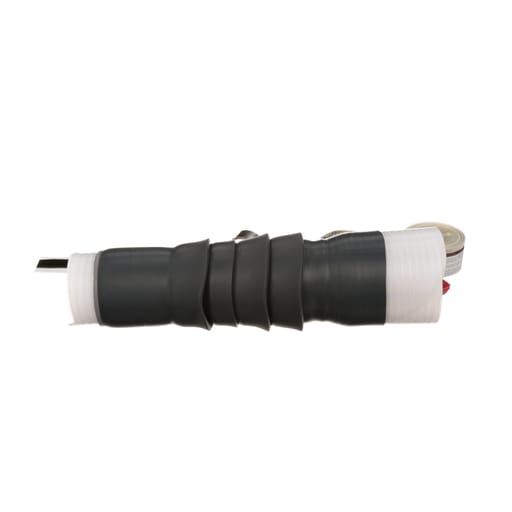

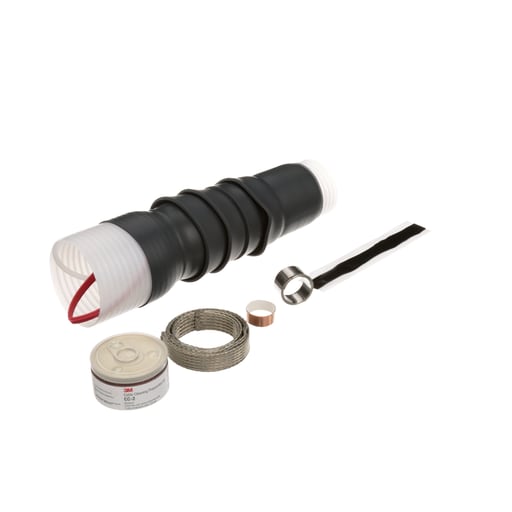

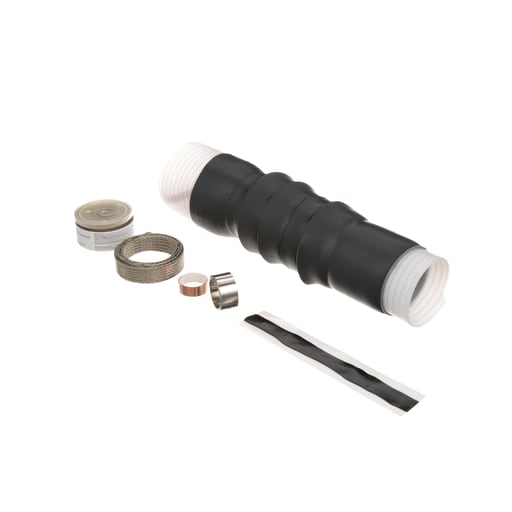

3M - 3M 7696-S-4 Cold Shrink QT-III Outdoor 4 Skirt Termination
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007422150
Applications - Outdoor
Catalog Number - 7000006123
Conductor Size - 1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 900 kcmil
Country of Origin - USA
Packaging
1 ea
EAN
00054007422150
Part #
478814
Catalog #
7000006123
Commercial reference
7000006123
12-Digit UPC:
054007422150
Applications:
Outdoor
Catalog Number:
7000006123
Conductor Size:
1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 900 kcmil
Country of Origin:
USA
ERP_productname:
3M 7696-S-4 (7000006123) COLD SHRINK QT-III TERMINATION KIT 7620-S, 7680-S & 7690-S SERIES
Family Brand Name:
3M
Type:
QT-III
Voltage:
15 kV
SoneparProductId:
SKU_US_26612192
3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7696-S-4 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil and 25/28 kV: 900-1750 kcmil. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for outdoor applications; Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
