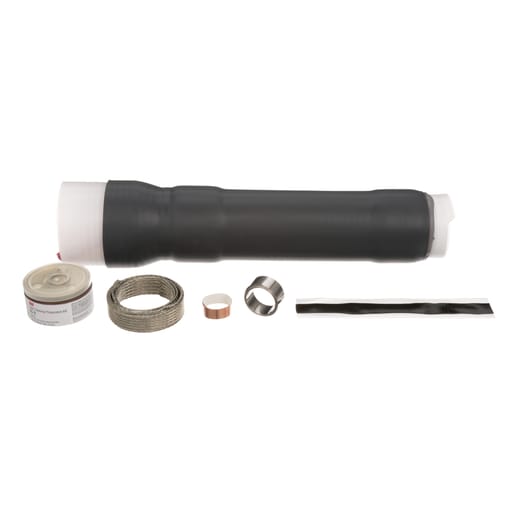

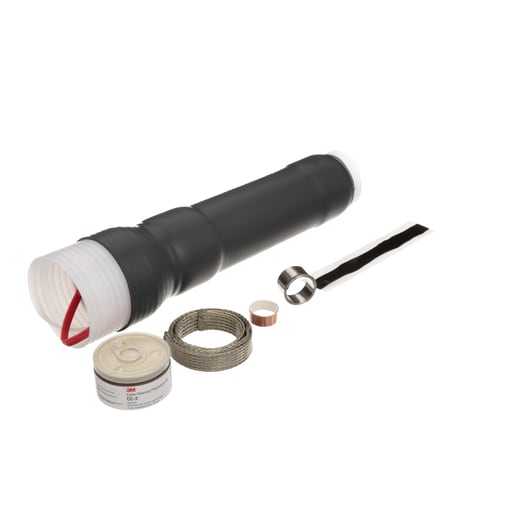

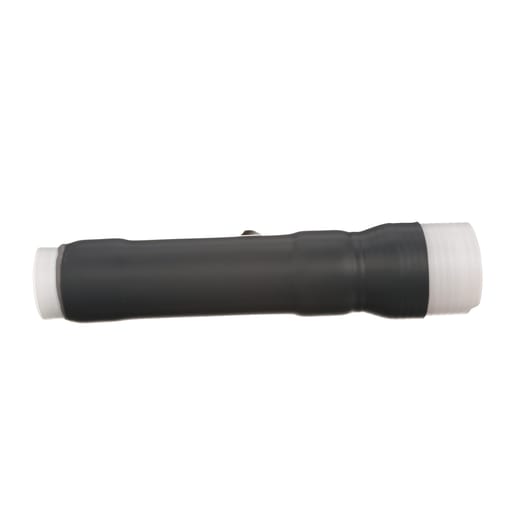

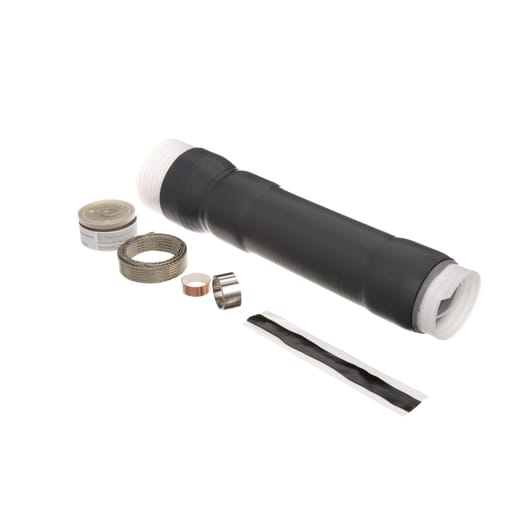

3M - 3M 7696-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007417804
Applications - Indoor
Catalog Number - 7000006106
Conductor Size - 1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country of Origin - USA
Packaging
1 ea
EAN
00054007417804
Part #
347976
Catalog #
7000006106
Commercial reference
7000006106
12-Digit UPC:
054007417804
Applications:
Indoor
Catalog Number:
7000006106
Conductor Size:
1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country of Origin:
USA
ERP_productname:
3M 7696-T-150 COLD SHRINK QT-III KIT
Family Brand Name:
3M
Type:
QT-III
Voltage:
15 kV
SoneparProductId:
SKU_US_26679928
3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7696-T-150 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil, 25/28 kV: 900-1750 kcmil and 35 kV: 700-1500 kcmil. Features: Provides a void-free seal to tape shield, wire shield and UniShield® power cables; High dielectric-constant material regulates the distribution of electric field stress; Suitable for indoor applications; Non-tracking, molded, silicone rubber insulation offers durability; Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
