3M - 3M 8426-9 Cold Shrink Connector Insulators
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 054007344575
Catalog Number - 7000006132
Color - Black
Conductor Material - Aluminum,Copper
Conductor Size - 70-125 mm
Packaging
1 ea
EAN
00054007344575
Part #
180394
Catalog #
7000006132
Commercial reference
7000006132
12-Digit UPC:
054007344575
Catalog Number:
7000006132
Color:
Black
Conductor Material:
Aluminum,Copper
Conductor Size:
70-125 mm
Country of Origin:
USA
ERP_productname:
MMM 8426-9 2/0-250 CLD SHRK INSLTR
Family Brand Name:
3M
Material:
Rubber
Number of Conductors:
1
Overall Length:
9.0 in
Product Type:
Splice
Size:
2/0 AWG; 250 kcmil; 3/0 AWG; 4/0 AWG
Type:
Cold Shrink Splice
Voltage:
1 kV
SoneparProductId:
SKU_US_25339236

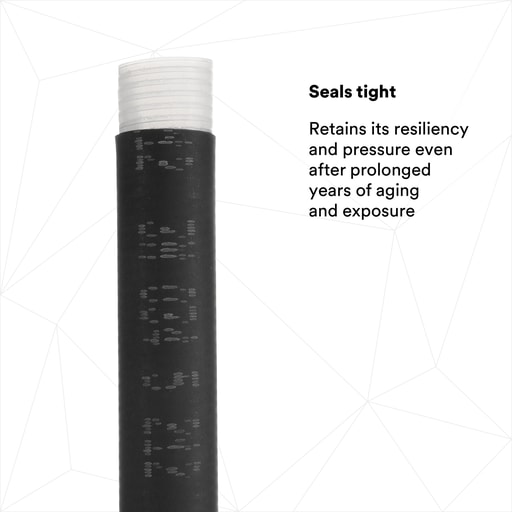

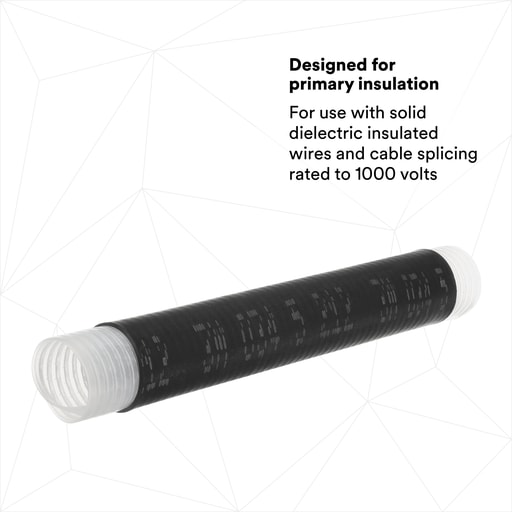

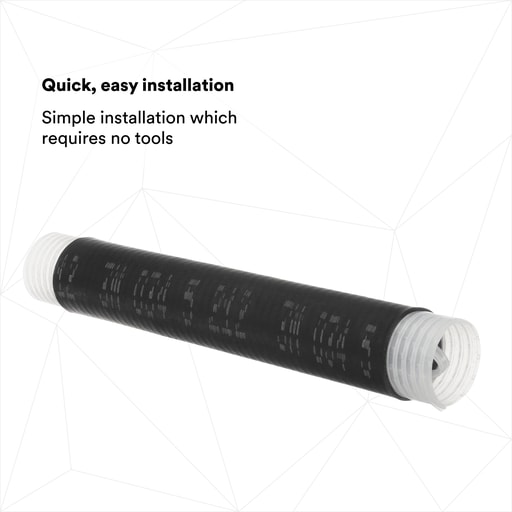

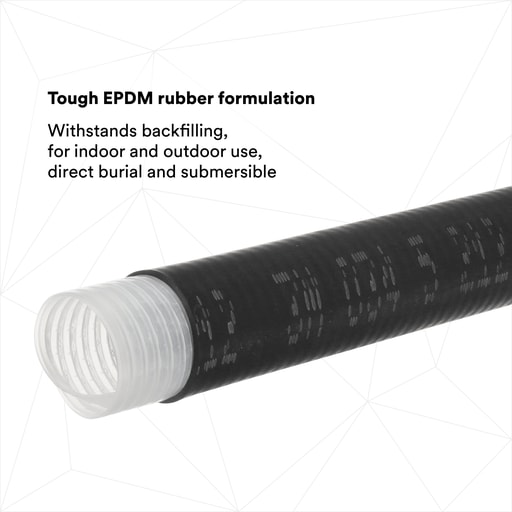

Quick and easy installation, no special tools and no heat requiredSeals tight, retains resiliency and pressureAccommodates a wide range of cable sizesResists acids, alkalis and ozoneNo mastic or tape required to seal Features: DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts; QUICK, EASY INSTALLATION: Simple installation which requires no tools; SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure; TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible; TEMPERATURE RANGE: Withstands temperatures of -40 to 194 ±F (-40 to 90 ±C); WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
