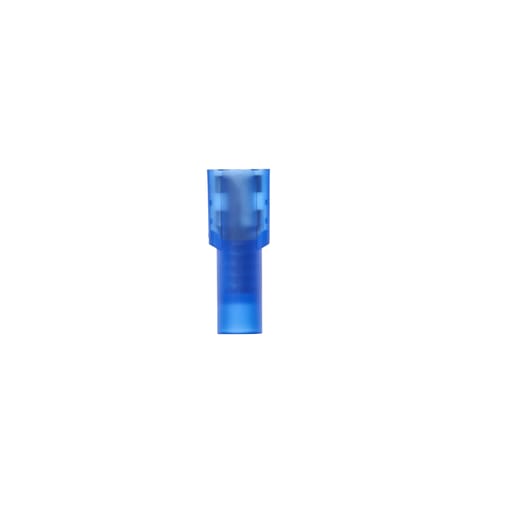

3M - 3M FDI14-250Q 25/Bag Fully Nylon Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128600016
Catalog Number - 7000133658
Color - Blue
Conductor Size - 14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128600016
Part #
224065
Catalog #
7000133658
Commercial reference
7000133658
12-Digit UPC:
051128600016
Catalog Number:
7000133658
Color:
Blue
Conductor Size:
14 AWG
Country of Origin:
USA
ERP_productname:
MMM FDI14-250Q FEMALE DISCONNECT FULLY NYLON INS 25/BAG
Family Brand Name:
3M
Length:
0.87 Inch
Material:
Nylon
Max Voltage:
1000 V
Overall Length:
0.87 in
Sub Brand:
Highland™
Tc Connection:
4-pin DC Micro,4 Pin Micro Quick Disconnect
Type:
E1 Plus Solid State Relay
Widths:
0.37 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_25762085
3M™ Highland™ Nylon Fully Insulated Female Disconnect Terminal FDI14-250Q accepts a wire range of AWG 16-14 and has a stud size of .250. It is attached to male disconnect with the tongue slipping over male tab. The use of dents and rolled edges on the female part provides excellent holding force while allowing easy and quick disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Highland™ Nylon Fully Insulated Female Disconnect Terminals are UL Listed and CSA Certified. Features: Nylon-insulated, butted-seam barrel offers easy insertion of wires; Dents and rolled edges of this female disconnect terminal offer excellent holding force; Allows for quick and easy disconnect of wires
